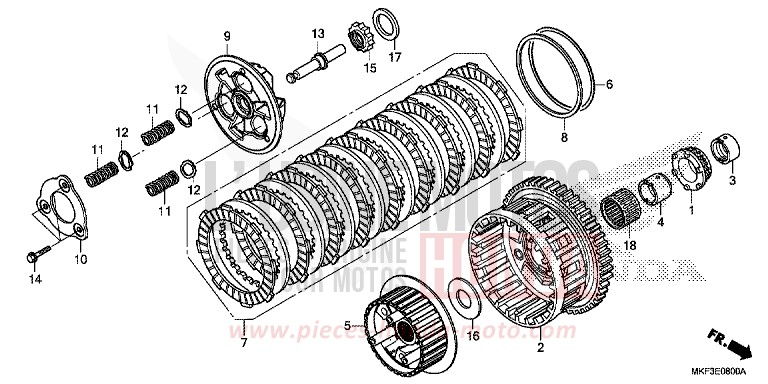

CLUTCH for CBR1000SP VICTORY RED (R334X) from 2017

CLUTCH for CBR1000SP VICTORY RED (R334X) from 2017
Reference
Product name
#1 15131-MEL-003

SPROCKET, OIL PUMP DRIVE (26T)

Price €89.69
#2 22100-MFL-880

OUTER COMP A, CLUTCH (BLUE)

Price €697.09
#2 22110-MFL-880

OUTER COMP B, CLUTCH (YELLOW)

Price €600.44
#2 22115-MFL-880

OUTER COMP C, CLUTCH (GREEN)

Price €341.20
#3 22116-MEL-000

COLLAR, OIL PUMP SPROCKET

Price €38.54
#4 22117-MFL-880

GUIDE A, CLUTCH OUTER (2MM HOLE X2)

Price €41.10
#4 22118-MFL-880

GUIDE B, CLUTCH OUTER (2MM HOLE X3)

Price €47.62
#4 22119-MFL-880

GUIDE C, CLUTCH OUTER (2MM HOLE X4)

Price €43.24
#5 22121-MKF-D41

CENTER, CLUTCH

Price €141.66
#6 22125-HP6-A00

SEAT, JUDDER SPRING

Price €6.77
#7 22210-MKF-D40

DISK SET, CLUTCH

Price €181.07
#8 22325-MJP-G51

SPRING, JUDDER

Price €60.68
#9 22350-MKF-D41

PLATE COMP, CLUTCH PRESSURE

Price €90.06
#10 22361-MJP-G51

PLATE, SETTING

Price €32.84
#11 22401-MKF-D41

SPRING, CLUTCH

Price €15.91
#12 22425-MKF-D41

SEAT, CLUTCH SPRING

Price €15.83
#13 22847-MGP-D60

PIN, CLUTCH LIFTER

Price €67.04
#14 90050-MKF-D41

BOLT, FLANGE, 6X45

Price €7.58
#15 90231-MS2-610

NUT, LOCK, 25MM

Price €14.48
#16 90401-MS2-610

WASHER, THRUST, 282X56X2

Price €14.21
#17 90407-MFL-000

WASHER, 251X37X32

Price €11.77
#18 91101-MFL-881

BEARING A, NEEDLE, 35X41X278 (RED)

Price €27.85
#18 91102-MFL-881

BEARING B, NEEDLE, 35X41X278 (WHITE)

Price €27.85
#18 91103-MFL-881

BEARING C, NEEDLE, 35X41X278 (GREEN)

Price €27.85
