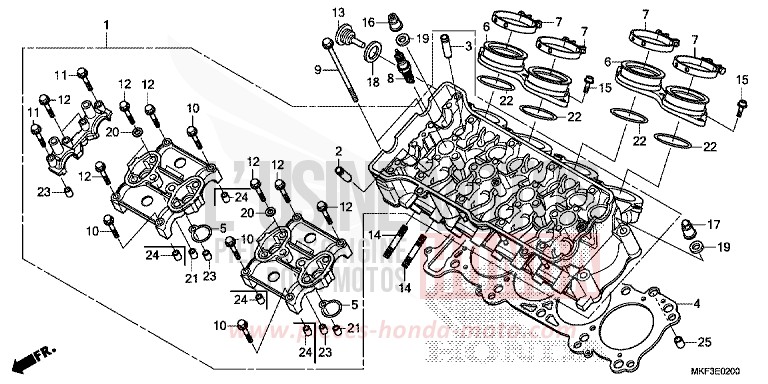

CYLINDER HEAD for CBR1000SP VICTORY RED (R334X) from 2017

CYLINDER HEAD for CBR1000SP VICTORY RED (R334X) from 2017
Reference
Product name
#2 12204-MBW-305

GUIDE, IN VALVE (OS) (EXHAUST SIDE)

Price €33.25
#3 12204-MFL-305

GUIDE, VALVE (OS)

Price €38.62
#7 16218-MKF-D40

BAND, INSULATOR

Price €24.78
#9 90012-MFL-000

BOLT, FLANGE, 6X105

Price €10.25
#12 90016-KT7-000

BOLT, FLANGE, 6X37

Price €5.21
#11 90018-425-000

BOLT, FLANGE, 6X48

Price €6.82
#13 90023-MFL-000

SHAFT B, CAM CHAIN TENSIONER

Price €41.41
#14 90035-MM5-000

BOLT, STUD, 8X24

Price €7.31
#15 90071-MEL-000

BOLT, FLANGE SOCKET, 6X16

Price €6.08
#16 90232-MFL-000

NUT, SPECIAL, 9MM

Price €12.91
#17 90234-MFL-000

NUT, SPECIAL CAP, 9MM

Price €17.74
#18 90403-MFL-000

WASHER, SEALING, 24MM

Price €5.99
#19 90405-MFL-000

WASHER, PLAIN, 9MM

Price €7.48
#20 90463-ML7-000 i

WASHER, SEALING, 65MM

Price €4.62
#21 90701-MG3-000

DOWEL PIN, 8X24

Price €6.94
#22 91301-MEL-003 i

O-RING, 437X25

Price €12.04
#23 94301-08200 i

DOWEL PIN, 8X20

Price €2.05
#25 94301-10160 i

DOWEL PIN, 10X16

Price €2.38
#1 12010-MKF-D71 i

HEAD ASSY, CYLINDER

Price €3,617.09
#4 12251-MKF-D71

GASKET, CYLINDER HEAD

Price €189.40
#5 12395-MKF-D70

GASKET, PLUG HOLE

Price €11.54
#6 16210-MKF-D70

INSULATOR COMP, THROTTLE BODY

Price €129.92
#8 31911-MKF-D71

PLUG, SPARK (SILMAR10C9S) (NGK)

Price €49.19
