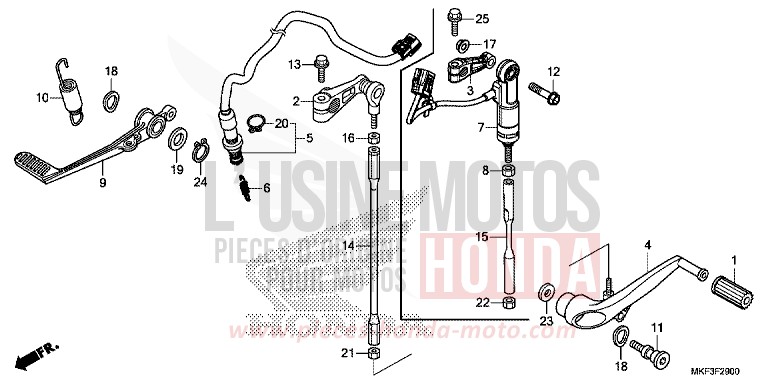

PEDAL for CBR1000SP VICTORY RED (R334X) from 2017

PEDAL for CBR1000SP VICTORY RED (R334X) from 2017
Reference
Product name
#1 24705-MR7-000

RUBBER, GEAR CHANGE PEDAL

Price €10.86
#3 24711-MKF-D60

ARM, GEAR CHANGE

Price €86.54
#4 24720-MFL-D20 i

PEDAL COMP, GEAR CHANGE

Price €124.72
#5 35350-MKF-D41

SWITCH ASSY, RR STOP

Price €91.12
#6 35357-MBR-000

SPRING, STOP SWITCH

Price €7.72
#8 45423-KA4-700

NUT, HEX, 6MM (LEFT HAND THREAD)

Price €5.84
#9 46500-MFL-D20 i

PEDAL COMP, RR BRAKE

Price €135.00
#10 46515-MBW-000 i

SPRING ASSY, BRAKE PEDAL

Price €14.36
#11 90113-MCF-000

BOLT, CHANGE PIVOT

Price €17.89
#12 90115-MKF-D60

BOLT, FLANGE, 7X30

Price €7.55
#17 90202-KV3-000 i

NUT, FLANGE, 7MM

Price €5.84
#18 90505-MBW-000

WASHER, CHANGE PEDAL WAVE

Price €8.00
#19 90557-230-000

WASHER, 152X25

Price €6.80
#20 90601-KAF-003

CLIP, SWITCH COVER

Price €6.23
#22 94002-060800S i

NUT, HEX, 6MM

Price €0.85
#23 94103-08700

WASHER, PLAIN, 8MM

Price €0.64
#24 94511-15000

CIRCLIP, EXTERNAL, 15MM

Price €0.94
#7 36390-MKF-D61

SENSOR ASSY, STROKE

Price €2,189.60
#15 90165-MKF-D60

BAR, CHANGE

Price €57.11
#25 96300-0602008

BOLT, FLANGE, 6X20

Price €1.04
