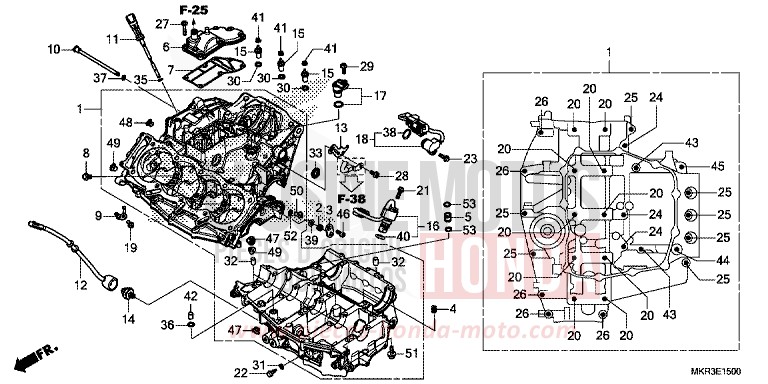

CRANKCASE for CBR1000SP GRAND PRIX RED (R380) from 2022

CRANKCASE for CBR1000SP GRAND PRIX RED (R380) from 2022
Reference
Product name
#1 11000-MKR-D60

CRANKCASE SET

Price €4,603.38
#2 11202-MKR-D10

COLLAR, SEALING

Price €14.16
#3 11205-MKR-D10

PLATE, SEALING COLLAR STOPPER

Price €5.99
#4 11206-MKR-D10

ORIFICE

Price €17.02
#5 11207-MKR-D10

COLLAR, ORIFICE

Price €18.44
#6 11410-MKR-D10

COVER COMP, STARTER GEAR

Price €145.03
#7 11415-MKR-D11

GASKET, STARTER GEAR COVER

Price €14.93
#8 15290-6C1-A01

BOLT COMP, OIL JET

Price €40.56
#9 15330-MKR-D11

JET COMP, PISTON

Price €48.85
#10 15350-MFL-000

PIPE COMP, TRANSMISSION OIL JET

Price €86.51
#11 15750-MKR-D10

GAUGE, OIL LEVEL

Price €40.98
#12 32101-MKR-D10

SUB HARNESS, ENGINE

Price €21.34
#13 32154-MKR-D10

STAY, STROKE SENSOR

Price €13.15
#14 35500-MJ4-024 i

SWITCH ASSY, OIL PRESSURE (DENSO)

Price €67.16
#15 35600-MKF-D41

SWITCH ASSY, NEUTRAL

Price €50.26
#16 37510-MKR-D10

SENSOR COMP, CRANK

Price €380.99
#17 37700-MJE-D01

SENSOR ASSY, SPEED (TDK-EPC)

Price €47.42
#18 38800-MKR-D11

SENSOR ASSY, ANGLE

Price €421.24
#19 90001-MJP-G50

BOLT, FLANGE SOCKET, 6X14

Price €5.83
#20 90001-MKR-D11

BOLT, FLANGE, 9X120

Price €16.60
#21 90002-MJP-G50

BOLT, FLANGE SOCKET, 6X18

Price €6.58
#22 90004-MKR-D10

BOLT, SPECIAL, 6X18

Price €5.34
#23 90011-MGE-D00

BOLT, KNOCK, 6MM

Price €8.03
#24 90017-MEL-000

BOLT, FLANGE, 7X60

Price €6.46
#25 90017-MFL-000

BOLT, FLANGE, 7X50

Price €6.82
#26 90019-MFA-D00

BOLT, FLANGE, 7X40

Price €6.46
#27 90027-GHB-700

BOLT, FLANGE, 6X30

Price €5.96
#28 90030-GHB-630

BOLT, FLANGE, 6X14

Price €5.46
#29 90031-GHB-650

BOLT, FLANGE, 6X18

Price €5.71
#30 90443-MJ6-000

WASHER, NEUTRAL

Price €5.02
#31 90463-ML7-000 i

WASHER, SEALING, 65MM

Price €4.62
#32 90701-MV9-670

DOWEL PIN, 10X16

Price €7.63
#33 91203-KA4-771 i

OIL SEAL, 14X22X5 (NOK)

Price €7.16
#35 91303-MJ0-003

O-RING, 63X23 (ARAI)

Price €6.65
#36 91305-422-000 i

O-RING, 98X24

Price €7.34
#37 91307-422-000 i

O-RING, 48X19

Price €6.88
#38 91310-MGE-D01

O-RING, 165X25

Price €14.00
#39 91314-PC9-004 i

O-RING, 85X19 (NOK)

Price €4.96
#40 91333-PNC-006

O-RING

Price €4.84
#41 94050-04000 i

NUT, FLANGE, 4MM

Price €0.88
#42 94301-10120

DOWEL PIN, 10X12

Price €2.08
#43 95701-0805500 i

BOLT, FLANGE, 8X55

Price €2.87
#44 95701-0808000 i

BOLT, FLANGE, 8X80

Price €1.81
#45 95701-1006000 i

BOLT, FLANGE, 10X60

Price €2.08
#46 96600-0601400

BOLT, SOCKET, 6X14

Price €1.25
#47 90002-RGA-000

BOLT, SEALING, 12X8

Price €8.06
#48 90005-MAZ-000

BOLT, SOCKET, 10MM

Price €5.71
#49 90005-MJP-G80

BOLT, SOCKET, 10MM

Price €10.02
#50 90019-MAT-000

BOLT, SEALING, 8MM

Price €9.20
#51 90102-VK4-000

BOLT, FLANGE SOCKET, 6X20

Price €2.70
#52 90475-703-000 i

WASHER C, 8MM

Price €0.90
#53 91305-R7L-003

O-RING, 106X19

Price €5.41
