STARTER MOTOR 🏍️ CBR1000SP
CRANKCASE 🏍️ CBR1000SP

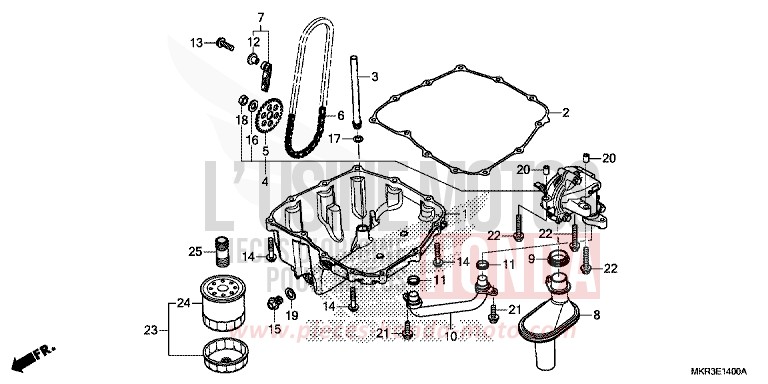

OIL PAN/OIL PUMP for CBR1000SP GRAND PRIX RED (R380) from 2020

OIL PAN/OIL PUMP for CBR1000SP GRAND PRIX RED (R380) from 2020
Reference
Product name
#6 15141-MFL-003

CHAIN, OIL PUMP (72L)

Price €47.95
#7 15146-MFL-000

GUIDE COMP, OIL PUMP CHAIN

Price €16.03
#9 15154-MAT-000

PACKING, OIL STRAINER

Price €11.04
#12 61107-MCR-D00

COLLAR, FR FENDER

Price €6.67
#13 90011-MFL-000

BOLT, FLANGE, 6X20

Price €5.71
#14 90027-GHB-700

BOLT, FLANGE, 6X30

Price €5.96
#15 90131-883-000 i

BOLT, DRAIN PLUG, 12X15

Price €4.84
#17 91309-ML7-003 i

O-RING, 96X26 (ARAI)

Price €5.82
#19 94109-12000 i

WASHER, DRAIN PLUG, 12MM

Price €1.78
#20 94301-08140 i

DOWEL PIN, 8X14

Price €2.05
#21 95701-0601600 i

BOLT, FLANGE, 6X16

Price €1.18
#22 95701-0603500 i

BOLT, FLANGE, 6X35

Price €1.34
#23 15010-MKR-305 i

FILTER SET, OIL

Price €16.86
#24 15410-MFJ-D02 i

CARTRIDGE, OIL FILTER (WAKO FILTER)

Price €16.86
#1 11210-MKR-D10

PAN, OIL

Price €860.50
#2 11215-MKR-D11

GASKET, OIL PAN

Price €22.56
#3 11530-MKR-D10

PIPE, OIL BREATHER

Price €29.34
#4 15100-MKR-305

PUMP SET, OIL

Price €484.15
#5 15134-MKR-D10

SPROCKET, OIL PUMP DRIVEN (30T)

Price €69.73
#8 15150-MKR-D10

STRAINER COMP, OIL

Price €100.21
#10 15310-MKR-D10

PIPE COMP, OIL

Price €117.94
#11 15433-MKR-D11

SEAL, RING

Price €4.64
#16 90410-KR0-000 i

WASHER, 10MM

Price €7.48
#18 94002-102000S

NUT, HEX, 10MM

Price €0.88
#25 90019-MKR-D10

BOSS, OIL FILTER

Price €22.86
# 31200-MKR-D11

MOTOR ASSY, STARTER

Price €752.87
# 31201-MEW-921

BRUSH SET A, CARBON

Price €18.88
# 31202-MEW-921

BRUSH SET B, CARBON

Price €18.88
# 31203-MEW-921

HOLDER, BRUSH

Price €13.49
# 31204-MEW-921

SPRING, CARBON BRUSH

Price €6.92
# 31205-MFJ-D01

BOLT, SETTING

Price €9.90
# 31206-MEW-921

BOLT, TERMINAL

Price €6.38
# 31207-HP5-601

RING

Price €6.80
# 31208-MEW-921

INSULATOR

Price €5.58
# 31209-MEW-921

STOPPER, TERMINAL

Price €12.14
# 31210-MEW-921

WASHER

Price €5.44
# 32156-MJP-G50

STAY, HARNESS CLIP

Price €14.84
# 90071-MB0-000 i

NUT-WASHER, 6MM

Price €6.12
# 91309-425-003 i

O-RING, 244X31 (ARAI)

Price €12.66
# 91320-MB0-000

O-RING, 4X2

Price €5.34
# 93892-0501208 i

SCREW-WASHER, 5X12

Price €1.34
# 95801-0602800 i

BOLT, FLANGE, 6X28

Price €1.34
