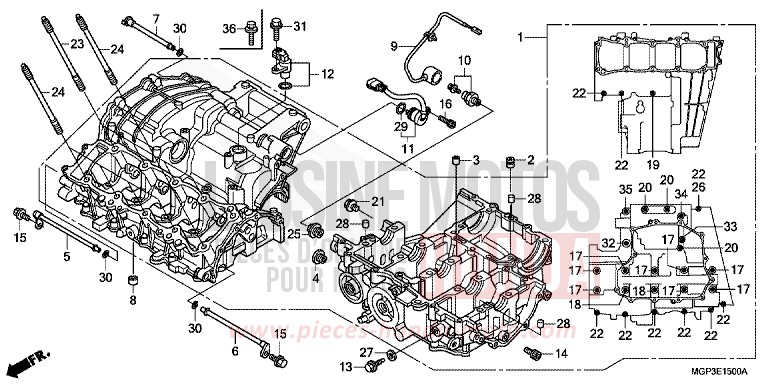

CRANKCASE for CBR1000RR Fireblade VICTORY RED (R334XA) from 2012

CRANKCASE for CBR1000RR Fireblade VICTORY RED (R334XA) from 2012
Reference
Product name
#1 11000-MGP-000

CRANKCASE SET

Price €5,425.07
#2 11206-MFL-000

ORIFICE

Price €17.22
#3 11207-MFL-000

ORIFICE, 11MM

Price €9.41
#4 12208-PR3-000

BOLT, SEALING, 20MM

Price €7.50
#5 15330-MFL-000

PIPE COMP, R OIL JET

Price €88.92
#6 15340-MFL-000

PIPE COMP, L OIL JET

Price €88.92
#7 15350-MFL-000

PIPE COMP, TRANSMISSION OIL JET

Price €64.14
#8 15351-MFJ-D00

ORIFICE, 1MM

Price €14.69
#9 32101-MFL-760

SUB HARNESS, ENGINE

Price €38.80
#10 35500-MJ4-024

SWITCH ASSY, OIL PRESSURE (DENSO)

Price €83.11
#11 35759-MGP-003

SWITCH ASSY, CHANGE

Price €218.15
#12 37700-MFL-761

SENSOR ASSY, SPEED

Price €213.26
#13 90004-MM5-000

BOLT, SPECIAL, 6X18

Price €2.89
#14 90010-MEL-000

BOLT, SOCKET, 8X12

Price €4.69
#15 90011-MFJ-D00

BOLT, KNOCK, 6MM

Price €7.57
#16 90011-MGP-000

BOLT, SOCKET KNOCK, 6MM

Price €12.73
#17 90015-MFL-003

BOLT, FLANGE, 9X105

Price €11.05
#18 90016-MFL-003

BOLT, FLANGE, 9X126

Price €11.57
#19 90017-MEL-000

BOLT, FLANGE, 7X60

Price €6.79
#20 90017-MFL-000

BOLT, FLANGE, 7X50

Price €5.59
#21 90019-MAT-000

BOLT, SEALING, 8MM

Price €8.33
#22 90019-MFA-D00

BOLT, FLANGE, 7X40

Price €5.18
#23 90032-MFL-000

BOLT, STUD, 9X1455

Price €23.08
#24 90033-MFL-000

BOLT, STUD, 9X134

Price €22.13
#25 90048-MFL-000

BOLT, SEALING, 22MM

Price €16.54
#26 90447-KE1-000

WASHER, SEALING, 7MM

Price €5.86
#27 90463-ML7-000

WASHER, SEALING, 65MM

Price €5.84
#28 90701-MV9-670

DOWEL PIN, 10X16

Price €7.90
#29 91305-KC1-850

O-RING, 165X25

Price €5.46
#30 91307-422-000

O-RING, 48X19

Price €5.40
#31 95701-0601800

BOLT, FLANGE, 6X18

Price €1.13
#32 95701-0805000

BOLT, FLANGE, 8X50

Price €2.81
#33 95701-0805507

BOLT, FLANGE, 8X55

Price €1.70
#34 95701-0808000

BOLT, FLANGE, 8X80

Price €1.78
#35 95701-1006000

BOLT, FLANGE, 10X60

Price €2.04
