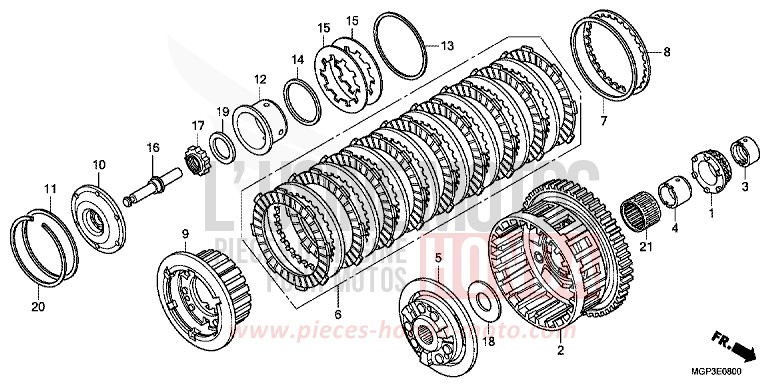

CLUTCH for CBR1000RR Fireblade VICTORY RED (R334XA) from 2012

CLUTCH for CBR1000RR Fireblade VICTORY RED (R334XA) from 2012
Reference
Product name
#1 15131-MEL-003

SPROCKET, OIL PUMP DRIVE (26T)

Price €89.69
#2 22100-MFL-880

OUTER COMP A, CLUTCH (BLUE)

Price €697.09
#2 22110-MFL-880

OUTER COMP B, CLUTCH (YELLOW)

Price €600.44
#2 22115-MFL-880

OUTER COMP C, CLUTCH (GREEN)

Price €341.20
#3 22116-MEL-000

COLLAR, OIL PUMP SPROCKET

Price €38.54
#4 22117-MFL-880

GUIDE A, CLUTCH OUTER (2MM HOLE X2)

Price €41.10
#4 22118-MFL-880

GUIDE B, CLUTCH OUTER (2MM HOLE X3)

Price €47.62
#4 22119-MFL-880

GUIDE C, CLUTCH OUTER (2MM HOLE X4)

Price €43.24
#5 22120-MFL-880

CENTER COMP, CLUTCH

Price €339.76
#6 22210-MFL-880

DISK SET, CLUTCH

Price €270.79
#7 22325-MFL-950

SPRING, CLUTCH PLATE

Price €15.54
#8 22326-MFL-950

SEAT, JUDDER SPRING

Price €14.86
#9 22350-MFL-880

PLATE COMP, CLUTCH PRESSURE

Price €123.61
#10 22354-MFL-000

LIFTER COMP, CLUTCH

Price €66.95
#11 22356-MFL-000

SEAT, CLUTCH LIFTER

Price €16.03
#12 22365-MFL-000

HOLDER, CLUTCH SPRING

Price €81.22
#13 22366-MFL-000

SEAT, CLUTCH SPRING

Price €17.03
#14 22368-MFL-000

SEAT B, CLUTCH SPRING

Price €15.01
#15 22401-MFL-950

SPRING, CLUTCH

Price €13.45
#16 22847-MFL-000

AXE DE COMMANDE D'EMBRAYAGE

Price €64.60
#17 90231-MS2-610

NUT, LOCK, 25MM

Price €14.48
#18 90401-MS2-610

WASHER, THRUST, 282X56X2

Price €14.21
#19 90407-MFL-000

WASHER, 251X37X32

Price €11.77
#20 90601-MFL-000

CIRCLIP, INTERNAL, 102

Price €12.84
#21 91101-MFL-881

BEARING A, NEEDLE, 35X41X278 (RED)

Price €27.85
#21 91102-MFL-881

BEARING B, NEEDLE, 35X41X278 (WHITE)

Price €27.85
#21 91103-MFL-881

BEARING C, NEEDLE, 35X41X278 (GREEN)

Price €27.85
