FRAME BODY 🏍️ CBR1000RA
UPPER COWL 🏍️ CBR1000RA

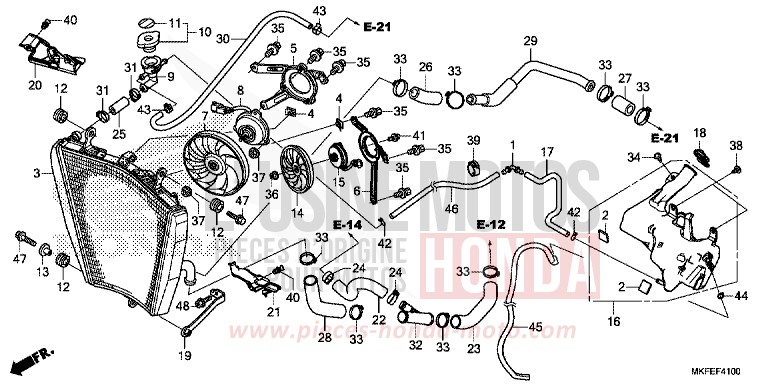

RADIATOR for CBR1000RA MAT BALLISTIC BLACK METALLIC (NHA86) from 2019

RADIATOR for CBR1000RA MAT BALLISTIC BLACK METALLIC (NHA86) from 2019
Reference
Product name
#1 17357-GE1-670

JOINT A, BREATHER

Price €6.61
#2 17525-GBC-300

RUBBER, FUEL TANK

Price €2.87
#3 19010-MKF-D41

RADIATOR COMP

Price €1,152.96
#4 19014-KEA-003

NUT, SETTING (6MM)

Price €6.47
#5 19015-MFL-D21

SHROUD COMP, R

Price €123.53
#6 19016-MKF-D41

SHROUD COMP, L

Price €121.13
#7 19020-MFA-D01

FAN COMP, COOLING

Price €98.60
#8 19030-MFL-D21

MOTOR ASSY, FAN

Price €658.03
#9 19035-MFL-003

NECK, FILLER

Price €34.79
#10 19037-MCA-G61

CAP COMP, RADIATOR (TRAD)

Price €62.52
#11 19046-MCA-G61

LABEL, RADIATOR CAP (TRAD)

Price €12.17
#12 19051-KA3-830

RUBBER, RADIATOR MOUNTING

Price €9.26
#13 19052-MAC-680

COLLAR, RADIATOR MOUNTING

Price €8.21
#14 19070-MFL-003

FAN COMP, COOLING

Price €77.47
#15 19080-MKF-D41

MOTOR ASSY, FAN

Price €223.80
#16 19101-MKF-D40

TANK, RADIATOR RESERVE

Price €119.45
#17 19106-MFL-000

TUBE, RESERVE TANK

Price €19.10
#18 19109-KPC-640

CAP, RESERVE TANK

Price €11.47
#19 19113-MFL-000

STAY, RADIATOR LOWER

Price €42.80
#20 19128-MKF-D40

GUARD, R RADIATOR

Price €15.59
#21 19129-MKF-D40

GUARD, L RADIATOR

Price €25.21
#22 19502-MFL-000

HOSE, OIL COOLER

Price €26.16
#23 19503-MKF-D40

HOSE A, RADIATOR

Price €45.47
#24 19504-KY1-003

CLAMP, WATER HOSE, 25MM

Price €12.90
#25 19504-MKF-D40

HOSE, FILLER NECK

Price €15.28
#26 19505-MKF-D40

HOSE A, WATER

Price €39.46
#27 19506-MKF-D40

HOSE, THERMOSTAT COVER (LOWER)

Price €28.13
#28 19508-MKF-D40

HOSE B, L RADIATOR

Price €50.98
#29 19509-MKF-D40

PIPE, WATER

Price €124.25
#30 19511-MFL-000

TUBE, WATER

Price €25.49
#31 19511-MKF-D41

CLAMP, HOSE (D19)

Price €16.55
#32 19514-MFJ-D00

JOINT, HOSE THREE-WAY

Price €33.10
#33 19514-MKF-D41

CLAMP, HOSE (D298)

Price €19.97
#34 90116-MCS-G00

RIVET, PUSH

Price €3.98
#35 90120-GHB-601

BOLT-WASHER, 6X12

Price €5.69
#36 90315-MFL-003

NUT, FLANGE, 3MM

Price €5.09
#37 90315-MK3-003

NUT, SERRATE, 5MM

Price €4.48
#38 90683-GR1-003

CLIP, BODY COVER

Price €6.06
#39 90683-KJ2-003

CLIP, WIRE HARNESS

Price €9.28
#40 91549-MW0-790ZA

CLIP, PANEL FIXING NH1 (NH1 BLACK)

Price €7.34
#41 93891-0400607

SCREW-WASHER, 4X6

Price €0.78
#42 95002-02100

CLIP, TUBE (B10)

Price €1.06
#43 95002-4125008

CLAMP, TUBE (D125)

Price €1.48
#44 95002-50000

CLIP, TUBE (C9)

Price €0.77
#45 95005-5058030

TUBE, 5X580 (95005-50001-30M)

Price €12.17
Contact us
#46 95005-5557020

TUBE, 53X570 (95005-55001-20M)

Price €14.59
Contact us
#47 96001-0602500

BOLT, FLANGE, 6X25

Price €1.48
#48 96300-0601600

BOLT, FLANGE, 6X16

Price €1.39
