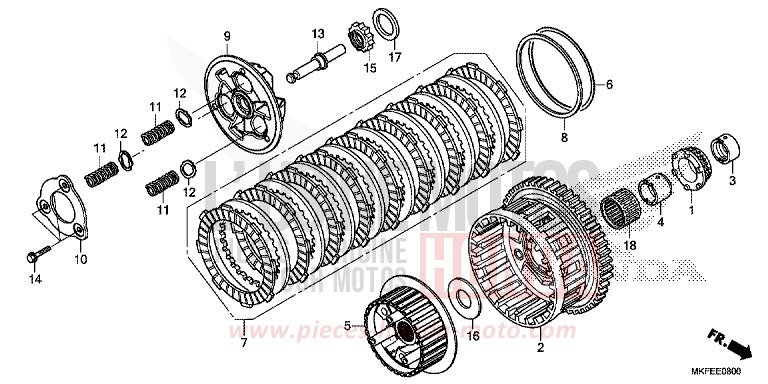

CLUTCH for CBR1000RA MAT BALLISTIC BLACK METALLIC (NHA86) from 2019

CLUTCH for CBR1000RA MAT BALLISTIC BLACK METALLIC (NHA86) from 2019
Reference
Product name
#1 15131-MEL-003

OIL PUMP DRIVE PINION (26T)

Price €81.52
#2 22100-MFL-880

OUTER COMP A, CLUTCH (BLUE)

Price €584.68
#2 22110-MFL-880

OUTER COMP B, CLUTCH (YELLOW)

Price €584.68
#2 22115-MFL-880

OUTER COMP C, CLUTCH (GREEN)

Price €617.41
#3 22116-MEL-000

BAND OF PINION OF PUMP A OIL

Price €41.84
#4 22117-MFL-880

GUIDE A, CLUTCH OUTER (2MM HOLE X2)

Price €55.02
#4 22118-MFL-880

GUIDE B, CLUTCH OUTER (2MM HOLE X3)

Price €55.02
#4 22119-MFL-880

GUIDE C, CLUTCH OUTER (2MM HOLE X4)

Price €55.02
#5 22121-MKF-D41

CENTER, CLUTCH

Price €152.96
#6 22125-HP6-A00

SEAT OF SPRING OF JUDDER

Price €9.48
#7 22210-MKF-D40

ASSY. OF DISQUE, CLUTCH

Price €263.04
#8 22325-MJP-G51

SPRING, JUDDER

Price €63.90
#9 22350-MKF-D41

PLATE COMP, CLUTCH PRESSURE

Price €96.98
#10 22361-MJP-G51

PLATE OF FIXING

Price €60.58
#11 22401-MKF-D41

SPRING, CLUTCH

Price €11.30
#12 22425-MKF-D41

SEAT OF SPRING D'CLUTCH

Price €24.10
#13 22847-MGP-D60

AXE OF COMMANDE D'CLUTCH

Price €73.58
#14 90050-MKF-D41

FLANGE BOLT, 6X45

Price €8.50
#15 90231-MS2-610 i

NUT BLOCAGE, 25MM

Price €21.13
#16 90401-MS2-610

WASHER OF STOPPER, 28.2X56X2

Price €18.22
#17 90407-MFL-000

WASHER, 25.1X37X3.2

Price €14.88
#18 91101-MFL-881

ROULEMENT A, A AIGUILLES 35X41X27.8 (ROUGE)

Price €26.09
#18 91102-MFL-881 i

NEEDLE BEARING B 35X41X27.8 (WHITE)

Price €26.09
#18 91103-MFL-881 i

BEARING C, NEEDLE, 35X41X278 (GREEN)

Price €26.09
