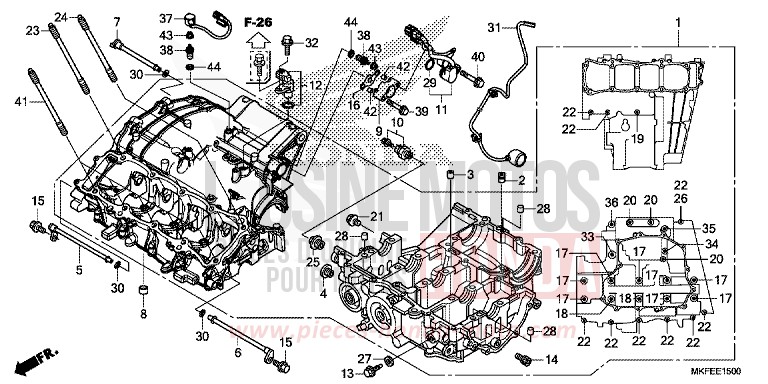

CRANKCASE for CBR1000RA GRAND PRIX RED (R380) from 2019

CRANKCASE for CBR1000RA GRAND PRIX RED (R380) from 2019
Reference
Product name
#1 11000-MKF-D40

CRANKCASE SET

Price €3,934.84
#2 11206-MFL-000

ORIFICE

Price €17.26
#3 11207-MFL-000

HOLE,

Price €10.28
#4 12208-PR3-000

BOLT, GASKET 20MM

Price €8.06
#5 15330-MFL-000

PIPE COMP, R OIL JET

Price €107.77
#6 15340-MFL-000

PIPE COMP, L OIL JET

Price €107.77
#7 15350-MFL-000

PIPE COMP, TRANSMISSION OIL JET

Price €86.51
#8 15351-MFJ-D00

ORIFICE, 1MM

Price €16.31
#9 11521-MKF-D40

HOLDER, ANGLE SENSOR

Price €72.10
#10 35500-MJ4-024 i

ASSY. SWITCH OF PRESSURE OIL (DENSO)

Price €67.16
#11 38800-MKF-D41

SENSOR ASSY, ANGLE

Price €431.96
#12 37700-MFL-761

ASSY. SENDER OF SPEED

Price €178.37
#13 90004-MM5-000

BOLT SPECIAL, 6X18

Price €4.96
#14 90010-MEL-000

BOLT OF SOCKET, 8X12

Price €5.71
#15 90011-MFJ-D00

BOLT OF STUD, 6MM

Price €7.19
#16 11522-MKF-D40

GASKET, ANGLE SENSOR HOLDER

Price €13.13
#17 90015-MFL-003 i

BOLT, FLANGE, 9X105

Price €14.63
#18 90016-MFL-003 i

BOLT, FLANGE, 9X126

Price €15.52
#19 90017-MEL-000

BOLT, FLANGE, 7X60

Price €6.46
#20 90017-MFL-000

BOLT, FLANGE, 7X50

Price €6.82
#21 90019-MAT-000

BOLT, SEALING, 8MM

Price €9.20
#22 90019-MFA-D00

FLANGE BOLT, 7X40

Price €6.46
#23 90032-MFL-000

BOLT, STUD, 9X1455

Price €36.74
#41 90033-MFL-000

BOLT, STUD, 9X134

Price €35.46
#25 90048-MFL-000

BOLT SEALING, 22MM

Price €25.46
#26 90447-KE1-000

WASHER SEALING, 7MM

Price €5.71
#27 90463-ML7-000 i

WASHER SEALING, 6.5MM

Price €4.62
#28 90701-MV9-670

STUD, 10X16

Price €7.63
#29 91310-MGE-D01

O-RING, 16.5X2.5

Price €14.00
#30 91307-422-000 i

O-RING, 48X19

Price €6.88
#31 32101-MKF-D40

SUB HARNESS, ENGINE

Price €25.24
#33 95701-0805000 i

FLANGE BOLT, 8X50

Price €2.87
#34 95701-0805507

BOLT, FLANGE, 8X55

Price €1.74
#35 95701-0808000 i

FLANGE BOLT, 8X80

Price €1.81
#36 95701-1006000 i

FLANGE BOLT, 10X60

Price €2.08
#37 32106-MKF-D60

SUB HARNESS, SPINDLE

Price €18.01
#38 35600-MKF-D41

ASSY. SWITCH NEUTRAL

Price €50.26
#39 90006-GHB-700

FLANGE BOLT, 6X35 (NSHF)

Price €5.46
#40 90012-MKF-D40

BOLT, KNOCK, 6MM

Price €14.63
#42 91320-KE1-000

DOWEL PIN, 8X7

Price €7.91
#43 94050-04000 i

FLANGE NUT, 4MM

Price €0.88
#44 90443-MJ6-000

WASHER OF NEUTRAL

Price €5.02
