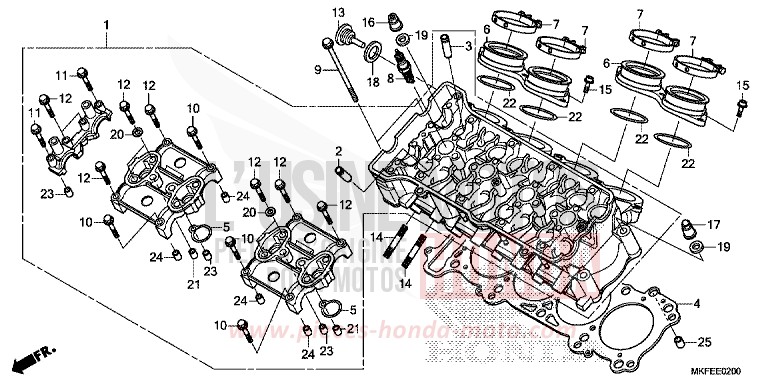

CYLINDER HEAD for CBR1000RA GRAND PRIX RED (R380) from 2019

CYLINDER HEAD for CBR1000RA GRAND PRIX RED (R380) from 2019
Reference
Product name
#1 12010-MKF-D40

HEAD ASSY, CYLINDER

Price €3,310.31
#2 12204-MBW-305

GUIDE, IN VALVE (OS) (EXHAUST SIDE)

Price €34.72
#3 12204-MFL-305

GUIDE, VALVE (OS)

Price €40.70
#4 12251-MFL-003

GASKET, CYLINDER HEAD

Price €107.84
#5 12395-MBW-003

GASKET, PLUG HOLE

Price €7.99
#6 16210-MKF-D40

INSULATOR COMP, THROTTLE BODY

Price €90.07
#7 16218-MKF-D40

BAND, INSULATOR

Price €25.26
#8 31912-MFL-003

PLUG, SPARK (IMR9E-9HES) (NGK)

Price €29.78
#8 31922-MEL-003

PLUG, SPARK (VUH27ES) (DENSO)

Price €44.68
#9 90012-MFL-000

BOLT, FLANGE, 6X105

Price €8.17
#11 90018-425-000

BOLT, FLANGE, 6X48

Price €6.07
#12 90016-KT7-000

BOLT, FLANGE, 6X37

Price €5.56
#13 90023-MFL-000

SHAFT B, CAM CHAIN TENSIONER

Price €39.56
#14 90035-MM5-000

BOLT, STUD, 8X24

Price €8.80
#15 90071-MEL-000

BOLT, FLANGE SOCKET, 6X16

Price €4.75
#16 90232-MFL-000

NUT, SPECIAL, 9MM

Price €9.89
#17 90234-MFL-000

NUT, SPECIAL CAP, 9MM

Price €13.81
#18 90403-MFL-000

WASHER, SEALING, 24MM

Price €4.69
#19 90405-MFL-000

WASHER, PLAIN, 9MM

Price €6.56
#20 90463-ML7-000

WASHER, SEALING, 65MM

Price €5.84
#24 94301-08200

DOWEL PIN, 8X20

Price €2.02
#22 91301-MEL-003

O-RING, 437X25

Price €8.94
#25 94301-10160

DOWEL PIN, 10X16

Price €2.33
