BATTERY 🏍️ CBR1000RA
SUB HARNESS 🏍️ CBR1000RA

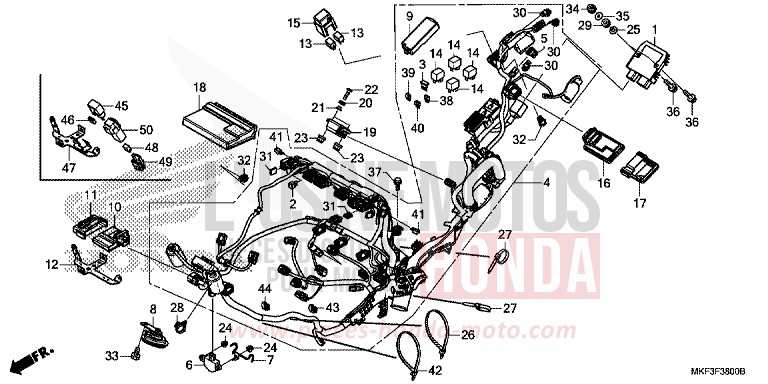

WIRE HARNESS for CBR1000RA GRAND PRIX RED (R380) from 2018

WIRE HARNESS for CBR1000RA GRAND PRIX RED (R380) from 2018
Reference
Product name
#1 31600-MJJ-D31

RECTIFIER ASSY, REGULATOR

Price €712.64
#2 31700-GFZ-J01

RESISTOR COMP

Price €19.08
#3 31730-MAS-601

DIODE ASSY, THREE WAY (SUMITOMO)

Price €48.62
#4 32100-MKF-D42

HARNESS, WIRE

Price €1,220.11
#5 32606-K44-V01

CAP, DUMMY (WPC 4P 090 M) (RED)

Price €16.82
#6 35160-MGS-D31

SENSOR ASSY, BANK ANGLE

Price €328.60
#7 35165-MKF-D40

GUIDE, BANK ANGLE SENSOR

Price €57.53
#8 38110-MFL-003

HORN COMP (HIGH)

Price €113.46
#9 38252-MFJ-D01

COVER, UPPER

Price €29.89
#10 38301-MKF-D41

RELAY COMP, WINKER (LED)

Price €196.63
#11 38306-MKF-D41

CUSHION, WINKER RELAY

Price €21.65
#12 38310-MKF-D40

STAY, WINKER RELAY

Price €38.76
#13 38501-KWN-901

RELAY COMP, POWER (MICRO ISO 4P) (OMRON)

Price €23.27
#14 38501-MEL-003

RELAY ASSY, POWER (MICRO ISO 4P)

Price €20.95
#15 38506-KZZ-900

COVER, RELAY (2P)

Price €7.24
#18 38770-MKF-D43

PGM-FI UNIT

Price €2,024.35
#19 39900-MKF-D40

SENSOR SET (2GYRO &amp 3G)

Price €538.04
#20 39963-MKF-D41

RUBBER, SENSOR MOUNTING

Price €15.28
#21 83119-MG9-000

COLLAR, LOCK SETTING

Price €7.19
#22 90085-MBW-000

BOLT, SPECIAL, 6X25

Price €6.95
#23 90301-473-003

NUT, U, 6MM (FUSE RASHI)

Price €7.24
#24 90301-MG8-000

NUT, FLANGE, 5MM (FUSE RASHI)

Price €4.42
#25 90502-GG2-000

COLLAR, RR FENDER

Price €6.52
#42 90650-MBY-000

BAND, HARNESS

Price €8.24
#27 90651-KV6-003

BAND, WIRE, 165MM (BLACK)

Price €7.72
#28 90652-HC4-003

CLAMP, HARNESS

Price €9.00
#29 90852-898-000

RUBBER, CONTROL BOX

Price €4.32
#30 91535-TA0-003

CLIP, COUPLER (DARK BROWN)

Price €8.64
#31 91554-SM4-003

HOLDER, BRACKET (RED)

Price €6.23
#32 91565-S0X-003

CLIP, COUPLER (DARK GREEN)

Price €5.77
#33 92101-080140G

BOLT, HEX, 8X14

Price €1.18
#34 94050-06070

NUT, FLANGE, 6MM

Price €1.06
#35 94103-06700

WASHER, PLAIN, 6MM

Price €0.77
#36 96001-0603507

BOLT, FLANGE, 6X35

Price €1.48
#37 96300-0601400

BOLT, FLANGE, 6X14

Price €1.39
#38 98200-41000

FUSE, MINI (10A)

Price €1.22
#39 98200-42000

FUSE, MINI (20A)

Price €1.22
#40 98200-43000

FUSE, MINI (30A)

Price €1.81
#41 32146-S84-003

CONNECTOR, DIODE (2P) (3A)

Price €26.36
#44 91541-S0A-003

CLIP, HARNESS BAND (BLACK) (145MM)

Price €4.24
