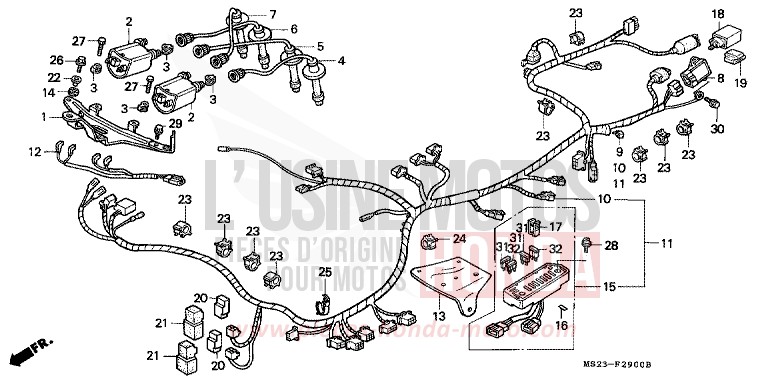

WIRE HARNESS for CBR1000F PEARL CRYSTAL WHITE (NH193K) from 1991

WIRE HARNESS for CBR1000F PEARL CRYSTAL WHITE (NH193K) from 1991
Reference
Product name
#1 30505-MS2-000

STAY, IGNITION COIL

Contact us
#2 30510-KT7-013

COIL COMP, IGNITION

Price €223.82
#3 30520-ML7-000

SPACER, IGNITION COIL

Price €8.63
#4 30751-MM5-020

CAP ASSY 1, HIGH TENSION

Price €70.32
Contact us
#5 30752-MM5-020

CAP ASSY 2, HIGH TENSION

Price €61.92
Contact us
#6 30753-MM5-020

CAP ASSY 3, HIGH TENSION

Price €61.92
Contact us
#7 30754-MM5-020

CAP ASSY 4, HIGH TENSION

Price €64.03
Contact us
#8 31600-MS2-601

RECTIFIER ASSY, REGULATE

Price €345.44
#9 31700-196-000

RECTIFIER COMP, SILICON

Price €43.91
#11 32100-MW7-610

HARNESS, WIRE

Contact us
#12 32105-MS2-000

SUB HARNESS, IGNITION

Price €25.42
Contact us
#13 32503-MS2-000

COVER, COUPLER

Contact us
#14 36037-657-000

GROMMET A, TUBE

Price €5.58
#16 38215-MW7-600

LABEL, FUSE

Contact us
#18 38301-KK9-952

RELAY COMP, WINKER (MITSUBA)

Price €85.27
#19 38306-GE7-000

SUSPENSION, WINKER RELAY

Price €11.92
#20 38501-GN2-014

RELAY COMP, STARTER (MITSUBA)

Price €62.41
#21 38506-GC7-611

SUSPENSION, STARTER RELAY (MITSUBA)

Price €13.49
#22 84706-415-000

COLLAR

Price €6.53
#23 90690-GHB-651

CLIP, CABLE, 15MM

Price €2.04
#25 91558-SD5-003

CLIP, WIRE HARNESS (BLACK)

Price €6.64
#26 92101-060160A

BOLT, HEX, 6X16

Price €1.04
#27 92101-060204J

BOLT, HEX, 6X20

Price €1.78
#29 95701-0601200

BOLT, FLANGE, 6X12

Price €1.13
#30 96001-0601600

BOLT, FLANGE, 6X16

Price €1.22
#31 98200-31000

FUSE, BLADE (10A)

Price €1.15
#32 98200-32000

FUSE, BLADE (20A)

Price €1.22
