CRANKSHAFT/PISTON 🏍️ CBR1000F
GEARSHIFT DRUM 🏍️ CBR1000F

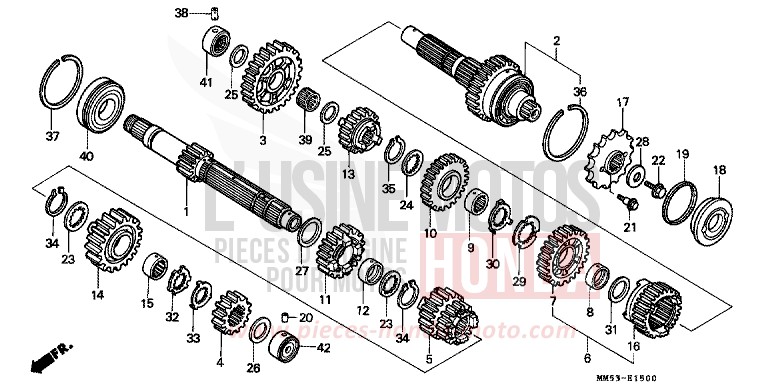

TRANSMISSION (CBR1000FH/FJ/FM) for CBR1000F PEARL CRYSTAL WHITE-A (NH193O) from 1988

TRANSMISSION (CBR1000FH/FJ/FM) for CBR1000F PEARL CRYSTAL WHITE-A (NH193O) from 1988
Reference
Product name
#1 23211-MM5-000

MAINSHAFT, TRANSMISSION (12T)

Contact us
#2 23220-MM5-640

COUNTERSHAFT COMP

Contact us
#3 23421-MM5-000

GEAR, COUNTERSHAFT LOW (33T)

Contact us
#4 23431-MM5-000

GEAR, MAINSHAFT SECOND (15T)

Contact us
#5 23451-MM5-640

GEAR, MAINSHAFT THIRD &amp FOURTH (19T/17T)

Contact us
#7 23461-MM5-640

GEAR, COUNTERSHAFT THIRD (28T)

Contact us
#8 23462-MM5-000

COLLAR, 30X127

Contact us
#9 23463-MM5-000

COLLAR, SPLINE, 30X127

Price €18.06
Contact us
#10 23481-MM5-640

GEAR, COUNTERSHAFT FOURTH (26T)

Contact us
#11 23491-MM5-640

GEAR, MAINSHAFT FIFTH (23T)

Contact us
#12 23495-MM5-000

COLLAR, 28X13

Price €22.10
#13 23501-MM5-640

GEAR, COUNTERSHAFT FIFTH (27T)

Contact us
#14 23511-MM5-640

GEAR, MAINSHAFT SIXTH (22T)

Contact us
#15 23512-MM5-000

COLLAR, SPLINE, 28X159

Price €20.96
Contact us
#16 23521-MM5-640

GEAR, COUNTERSHAFT SIXTH (23T)

Contact us
#17 23801-438-000

SPROCKET, DRIVE (17T)

Price €78.17
#18 23820-MM5-000

GUIDE, RING

Price €40.33
#19 23821-MB6-000

RING, DAMPER

Price €28.12
Contact us
#20 24261-283-000

PIN, GEARSHIFT FORK GUIDE

Price €7.90
#21 90020-438-000

BOLT, FLANGE, 6X20

Price €5.96
#22 90037-422-003

BOLT, SPECIAL, 10MM

Price €10.03
#23 90451-MM5-000

WASHER, SPLINE, 28X34X15

Price €5.75
Contact us
#24 90452-MM5-000

WASHER, THRUST SPLINE, 30MM

Price €5.44
Contact us
#26 90455-ML7-000

WASHER B, THRUST, 22MM (BLUE)

Price €8.36
#25 90456-ML7-000

WASHER A, THRUST, 22MM (RED)

Price €3.89
Contact us
#25 90457-ML7-000

WASHER C, THRUST, 22MM (YELLOW)

Contact us
#27 90458-729-920

WASHER, THRUST, 28MM

Price €5.05
#28 90459-438-000

WASHER, 102MM

Price €7.37
#29 90461-MM5-000

WASHER, THRUST, 30MM

Contact us
#30 90462-MM5-000

WASHER, LOCK, 30MM

Contact us
#31 90463-MM5-000

WASHER, THRUST, 30X36X1

Contact us
#32 90464-MM5-000

WASHER, SPLINE, 28X16

Contact us
#33 90465-MM5-000

WASHER, LOCK, 28MM

Contact us
#34 90602-MM5-000

CIRCLIP, 28MM

Price €7.90
#35 90604-MM5-000

CIRCLIP, 30MM

Price €9.89
#36 90605-MM5-000

RING, SNAP, 72MM

Price €10.51
#37 90606-MM5-000

RING, SNAP, 62MM

Price €10.51
#38 90705-MM5-000

PIN, BEARING SETTING

Price €5.84
Contact us
#39 91001-MB6-680

BEARING, NEEDLE, 22X26X13

Price €29.17
#40 91004-MM5-003

BEARING, RADIAL BALL, 28X62X16

Price €31.58
Contact us
#41 91022-MM5-003

BEARING, NEEDLE, 22MM (NTN)

Price €40.19
Contact us
#42 91023-MM5-641

BEARING, NEEDLE, 22MM

Price €43.57
