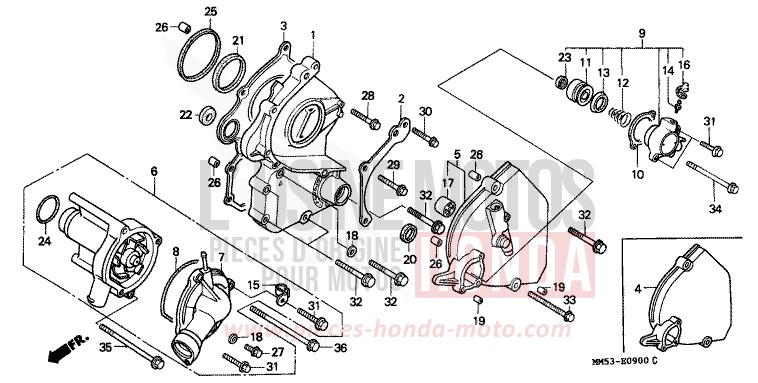

WATER PUMP for CBR1000F PEARL CRYSTAL WHITE-A (NH193O) from 1988

WATER PUMP for CBR1000F PEARL CRYSTAL WHITE-A (NH193O) from 1988
Reference
Product name
#1 11360-MM5-000

HOLDER COMP, L SIDE

Contact us
#2 11365-MM5-000

PLATE, DRIVE CHAIN GUIDE

Price €15.44
Contact us
#3 11394-MM5-003

GASKET, L SIDE

Price €10.07
Contact us
#4 11650-MM5-000

COVER ASSY, L RR CRANKCASE

Contact us
#6 19200-MM5-010

PUMP ASSY, WATER

Contact us
#7 19221-MM5-010

COVER, WATER PUMP

Contact us
#8 19226-MM5-003

GASKET, WATER PUMP COVER

Price €6.78
#9 22860-ML7-000

CYLINDER ASSY, CLUTCH SLAVE

Price €150.40
#10 22862-KE7-000

GASKET, SLAVE CYLINDER

Price €7.22
#11 22863-MJ8-003

PISTON, SLAVE CYLINDER

Price €47.34
#12 22864-MB0-003

SPRING, SLAVE CYLINDER

Price €9.73
#13 22865-MJ8-003

CUP, SLAVE CYLINDER

Price €20.93
#14 22866-MF2-711

SCREW, BLEEDER

Price €9.88
#16 43353-461-771

CAP, BLEEDER

Price €9.28
#18 90463-ML7-000

WASHER, SEALING, 65MM

Price €5.84
#19 91103-429-000

DOWEL PIN, 8X10

Price €8.63
#20 91204-KE8-003

OIL SEAL, 13X22X5 (ARAI)

Price €6.48
#21 91205-MM5-003

OIL SEAL, 40X55X7 (ARAI)

Price €13.78
#22 91208-689-005

OIL SEAL, 8X16X6 (NOK)

Price €3.50
#23 91209-MB0-003

OIL SEAL, 8X18X5

Price €5.11
#24 91302-MB0-013

O-RING, 3295X262 (ARAI)

Price €5.39
#25 91302-MM5-003

RING, OIL SEAL (ARAI)

Contact us
#26 94301-08140

DOWEL PIN, 8X14

Price €2.02
#27 95701-0601208

BOLT, FLANGE, 6X12

Price €1.06
#29 95801-0603500

BOLT, FLANGE, 6X35

Price €1.22
#30 95801-0604000

BOLT, FLANGE, 6X40

Price €1.22
#31 96001-0602500

BOLT, FLANGE, 6X25

Price €1.48
#32 96001-0604000

BOLT, FLANGE, 6X40

Price €1.70
#33 96001-0606500

BOLT, FLANGE, 6X65

Price €1.78
#34 96001-0607500

BOLT, FLANGE, 6X75

Price €1.78
#35 96001-0608500

BOLT, FLANGE, 6X85

Price €1.78
#36 96001-0610000

BOLT, FLANGE, 6X100

Price €2.33
