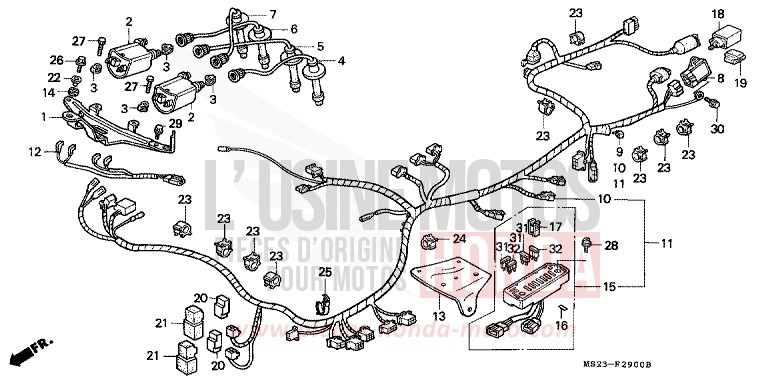

WIRE HARNESS for CBR1000F PASSION RED (R109B) from 1990

WIRE HARNESS for CBR1000F PASSION RED (R109B) from 1990
Reference
Product name
#1 30505-MS2-000

STAY, IGNITION COIL

Contact us
#2 30510-KT7-013 i

COIL COMP. IGNITION

Price €178.99
#3 30520-ML7-000

IGNITION COIL SPACER

Price €8.32
#4 30751-MM5-020

CAP ASSY 1, HIGH TENSION

Price €70.32
Contact us
#5 30752-MM5-020

CAP ASSY 2, HIGH TENSION

Price €64.50
Contact us
#6 30753-MM5-020

CAP ASSY 3, HIGH TENSION

Price €61.92
Contact us
#7 30754-MM5-020

CAP ASSY 4, HIGH TENSION

Price €64.03
Contact us
#8 31600-MS2-601

RECTIFIER ASSY, REGULATE

Price €405.06
#9 31700-196-000

RECTIFICATEUR COMP. SILICIUM

Price €42.31
#10 32100-MS2-870

HARNESS, WIRE

Contact us
#12 32105-MS2-000

SUB HARNESS, IGNITION

Price €25.42
Contact us
#13 32503-MS2-000

COVER, COUPLER

Contact us
#14 36037-657-000 i

GROMMET A, TUBE

Price €6.32
#15 38200-MS2-600

PLATE ASSY, FUSE

Contact us
#17 38235-SA5-004

EXTRACTEUR OF FUSIBLE (DAIICHI)

Price €6.44
#18 38301-KK9-952 i

RELAIS COMP. TURN SIGNAL (MITSUBA)

Price €112.91
#19 38306-GE7-000 i

RUBBER D'DAMPER OF CENTER CLIGNOTANTE

Price €14.16
#20 38501-GN2-014 i

STARTER MOTOR RELAY COMP. (MITSUBA)

Price €52.51
#21 38506-GC7-611

STARTER MOTOR RELAY BRACKET (MITSUBA)

Price €13.60
#22 84706-415-000

BAND

Price €7.20
#23 90690-GHB-651 i

WIRE CLIP, 15MM

Price €2.08
#24 90690-GHB-661 i

WIRE CLIP, 20MM

Price €2.08
#26 92101-060160A i

BOLT HEX., 6X16

Price €1.07
#27 92101-060204J i

BOLT HEX., 6X20

Price €1.81
#28 93891-0501207 i

SCREW A HEAD A WASHER, 5X12

Price €0.88
#29 95701-0601200 i

FLANGE BOLT, 6X12

Price €1.15
#30 96001-0601600 i

FLANGE BOLT, 6X16

Price €1.25
#31 98200-31000 i

FUSIBLE OF LAME (10A)

Price €1.18
#32 98200-32000

FUSIBLE OF LAME (20A)

Price €1.25
