TOOLS 🏍️ CBR1000F

MARK (4) (CBR1000FK) 🏍️ CBR1000F

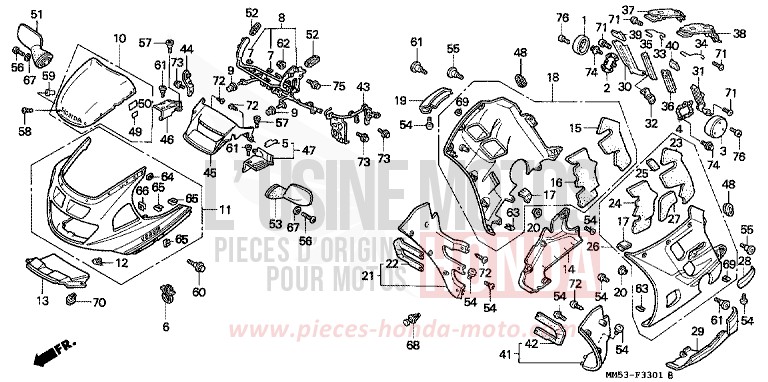

COWL (CBR1000FK) for CBR1000F PASSION RED (R109A) from 1989

Reference

Product name

Unit price

#1 11313-MS2-000

PROTECTOR COMP, R CRANKCASE COVER

€49.44

#2 11315-MS2-000

STAY, R COVER PROTECTOR

€57.00

#3 11323-MS2-000

PROTECTOR COMP, L CRANKCASE COVER

#4 11325-MS2-000

STAY, L COVER PROTECTOR

€69.11

#5 38215-MS2-600

LABEL, FUSE

#6 50310-HE0-003

CLIP A, WIRE

€7.72

#7 50384-045-670

CUSHION A, BATTERY

€5.93

#8 61311-MS2-000

STAY A, FR COWL

#9 61313-422-000

GROMMET B, HEADLIGHT

€15.06

#10 64205-MS2-600

SCREEN SET, WIND (WL)

#11 64215-MS2-000ZC

COWL SET, UPPER (WL) R109/TYPE3 (R109/TYPE3...

#12 64218-MS2-000

CLIP, AIR GUIDE

#13 64220-MS2-000ZB

GUIDE, OIL COOLER AIR R109 (R109 PASSION RED)

#14 64310-MS2-000ZA

COWL, R UNDER NH264M (NH264M HAZY GRAY METALLIC)

#15 64321-MS2-300

MAT, R MIDDLE COWL SILENCER

#16 64323-MS2-300

SHEET, R MIDDLE COWL

#17 64324-MS2-300

SHEET B, MIDDLE COWL

#18 64325-MS2-000ZC

COWL SET, R MIDDLE (WL) R109/TYPE3 (R109/TYPE3...

#19 64328-MS2-000ZC

PROTECTOR, R MIDDLE COWL NH193P (NH193P PEARL...

#20 64331-MS2-000

COLLAR, UNDER COWL SETTING

#21 64340-MS2-000ZB

COWL COMP, R INNER LOWER R109 (R109 PASSION RED)

#22 64341-MS2-300

SHEET, R INNER LOWER

#23 64361-MS2-300

MAT, L MIDDLE COWL SILENCER

#24 64363-MS2-300

SHEET, L MIDDLE COWL

#25 64364-MS2-300

MAT C, L MIDDLE COWL SILENCER

#26 64365-MS2-000ZC

COWL SET, L MIDDLE (WL) R109/TYPE3 (R109/TYPE3...

#27 64367-MS2-300

MAT B, L MIDDLE COWL SILENCER

#28 64368-MS2-000ZC

PROTECTOR, L MIDDLE COWL NH193P (NH193P PEARL...

#29 64370-MS2-000ZA

COWL, L UNDER NH264M (NH264M HAZY GRAY METALLIC)

#30 64402-MS2-000

SEPARATOR, R MIDDLE COWL AIR

#31 64403-MS2-000

SEPARATOR, L MIDDLE COWL AIR

€11.51

#32 64404-MM5-000

STAY, R MIDDLE COWL SEPARATOR

#33 64406-MS2-000

WIRE, R SEPARATOR RUBBER

#34 64407-MS2-000

WIRE, L SEPARATOR RUBBER

#35 64408-MS2-000

RUBBER, R MIDDLE COWL SEAL

#36 64409-MS2-000

RUBBER, L MIDDLE COWL SEAL

#37 64411-MS2-000

RUBBER A, R MIDDLE COWL SEPARATE

#38 64412-MS2-000

RUBBER A, L MIDDLE COWL SEPARATE

€23.24

#39 64413-MS2-000

RUBBER B, R MIDDLE COWL SEPARATE

#40 64414-MS2-000

RUBBER B, L MIDDLE COWL SEPARATE

€14.69

#41 64440-MS2-000ZB

COWL COMP, L INNER LOWER R109 (R109 PASSION RED)

#42 64441-MS2-300

SHEET, L INNER LOWER

#43 64502-MS2-000

HOLDER, COUPLER

#44 64503-MS2-000

SUB STAY, UPPER COWL

#45 64560-MS2-000

PANEL, AIR GUIDE

#46 64585-MS2-000ZC

PANEL SET, R INNER (WL) R109/TYPE3 (R109/TYPE3...

€146.59

#47 64595-MS2-000ZC

PANEL SET, L INNER (WL) R109/TYPE3 (R109/TYPE3...

#48 83551-MA6-000

GROMMET, SIDE COVER

€10.14

#50 87522-463-930

LABEL, WIND SCREEN CAUTION

€14.35

#51 88110-MS2-003ZB

MIRROR, R BACK R109 (R109 PASSION RED)

#52 88112-MS2-000

RUBBER, MIRROR MOUNTING

€12.42

#53 88120-MS2-003ZB

MIRROR, L BACK R109 (R109 PASSION RED)

#54 90001-MN8-000

SCREW, SPECIAL, 5X12

€7.26

#55 90106-KY2-701

SCREW, PAN, 6X11

€7.16

#56 90106-MS2-000

BOLT, SPECIAL, 6X25

€8.65

#57 90107-MM5-000

SCREW, PAN, 6X17

€7.72

#58 90109-SB6-000

SCREW, TRUSS, 5X16

€5.66

#59 90111-KW3-003

NUT, COWL SETTING, 5MM

€7.72

#60 90111-162-000

BOLT, FLANGE, 6MM

€5.76

#61 90113-MM5-000

SCREW, PAN, 6X14

€6.43

#62 90309-ML4-901

NUT, FLANGE, 8MM

€6.90

#63 90320-GE2-760

NUT, SPRING, 5MM

€4.31

#64 90320-MM5-000

NUT, SPRING, 6MM

€3.94

#65 90321-MM5-000

NUT, CLIP, 6MM

€9.50

#66 90322-MM5-000

NUT, SPRING, 5MM

€7.52

#67 90482-567-000

WASHER, SPECIAL, 6MM

€1.51

#68 90657-SB0-003

CLIP, SPLASH SHIELD

€4.90

#69 90677-GR1-003

NUT, CLIP, 5MM

€3.18

#70 91549-SD5-010ZC

CLIP, DEFROSTER GARNISH NH133L (NH133L AUTUMN...

€3.59

#71 93500-060100A

SCREW, PAN, 6X10

€1.04

#72 93903-24320

SCREW, TAPPING, 4X12

€0.62

#73 95701-0601000

BOLT, FLANGE, 6X10

€1.13

#74 95701-0601200

BOLT, FLANGE, 6X12

€1.13

#75 95801-0804007

BOLT, FLANGE, 8X40

€1.48

#76 96600-0601000

BOLT, SOCKET, 6X10

€1.39

COWL (CBR1000FK) for CBR1000F PASSION RED (R109A) from 1989
