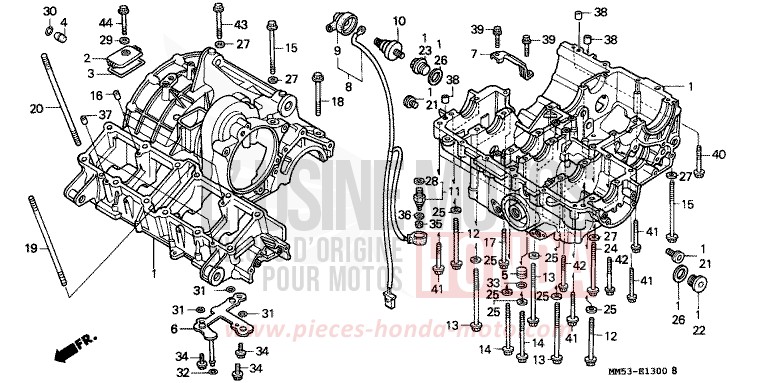

CRANKCASE for CBR1000F KARAKORUM GRAY METALLIC-U (NH197E) from 1988

CRANKCASE for CBR1000F KARAKORUM GRAY METALLIC-U (NH197E) from 1988
Reference
Product name
#1 11000-MM5-640

CRANKCASE SET

Contact us
#1 11000-MM5-641

CRANKCASE SET

Contact us
#2 11103-MM5-000

COVER, AC GENERATOR CHAMBER

Contact us
#3 11104-MM5-000

GASKET, AC GENERATOR CHAMBER COVER

Price €4.67
Contact us
#5 11208-MM5-000

COLLAR, MAIN GALLERY

Contact us
#6 12260-MM5-010

PLATE, OIL PATH

Contact us
#7 15162-MM5-000 i

GUIDE, OIL PUMP CHAIN

Price €44.71
Contact us
#8 32101-MM5-000

SUB HARNESS, ENGINE

Contact us
#9 32550-MJ6-000

COVER, NEUTRAL SWITCH

Price €5.81
Contact us
#10 35500-MJ4-014 i

SWITCH ASSY, OIL PRESSURE (DENSO)

Price €67.16
#11 35600-MM5-003 i

SWITCH ASSY, NEUTRAL (TEC)

Price €42.66
#12 90001-MM5-000

BOLT, UBS, 9X86

Contact us
#13 90002-MM5-000

BOLT, UBS, 9X131

Price €12.05
Contact us
#14 90003-MM5-000

BOLT, UBS, 9X151

Contact us
#15 90006-MM5-640

BOLT, FLANGE, 8X135

Price €10.36
#16 90010-MM5-000

ORIFICE, 13

Contact us
#17 90011-MM5-640

BOLT, FLANGE, 6X93

Price €9.90
#18 90015-MM5-640

BOLT, FLANGE, 10X75

Price €9.90
#19 90031-MM5-641

BOLT, STUD, 10X158

Contact us
#20 90032-MM5-641

BOLT, STUD, 10X153

Price €15.30
Contact us
#21 90042-MM5-000

BOLT, SPECIAL, 10MM

Price €9.90
#22 90048-ME5-000

BOLT, SEALING, 20MM

Price €17.89
#23 90048-MM5-000 i

BOLT, SEALING, 20MM

Price €10.48
#24 90069-MC7-000

BOLT, FLANGE, 8X115

Price €10.60
#25 90403-ML4-610 i

WASHER, SEALING, 10MM

Price €11.70
#26 90442-ME5-000

WASHER, SEALING, 20MM

Price €4.28
Contact us
#27 90442-028-000

WASHER, SEALING, 8MM

Price €5.71
#28 90443-MJ6-000

WASHER, NEUTRAL

Price €5.02
#29 90461-MF2-710 i

WASHER, SEALING, 65MM

Price €4.62
#31 91313-PC9-003

O-RING, 9X23 (NOK)

Price €5.29
#32 91307-MM5-641

SEAL, OIL PATH PLATE (ARAI)

Price €2.35
Contact us
#33 91370-461-000

O-RING, 119X22

Price €6.18
#34 92101-060140A i

BOLT, HEX, 6X14

Price €1.07
#35 94001-040000S i

NUT, HEX, 4MM

Price €0.85
#36 94111-04800

WASHER, SPRING, 4MM

Price €0.64
#37 94301-10160 i

DOWEL PIN, 10X16

Price €2.38
#38 94302-10160

PIN B, DOWEL, 10X16

Price €2.78
#39 95701-0601408 i

BOLT, FLANGE, 6X14

Price €1.15
#40 95701-0605000 i

BOLT, FLANGE, 6X50

Price €1.66
#41 95701-0804000 i

BOLT, FLANGE, 8X40

Price €1.66
#42 95701-0806000 i

BOLT, FLANGE, 8X60

Price €1.92
#43 95701-0808000 i

BOLT, FLANGE, 8X80

Price €1.81
#44 96001-0605500 i

BOLT, FLANGE, 6X55

Price €1.74
