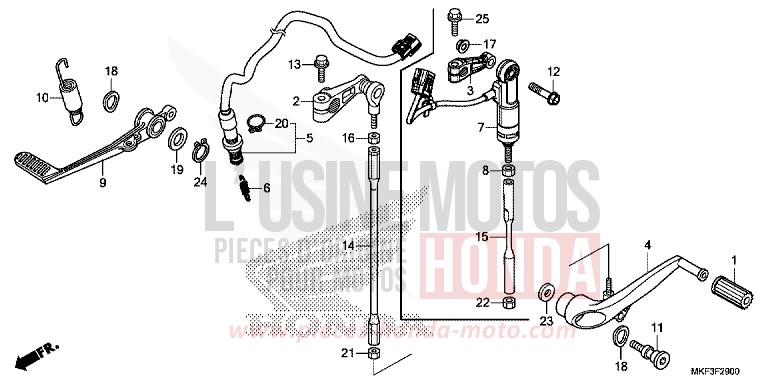

PEDAL for CBR1000 VICTORY RED (R334) from 2017

PEDAL for CBR1000 VICTORY RED (R334) from 2017
Reference
Product name
#1 24705-MR7-000

RUBBER, GEAR CHANGE PEDAL

Price €11.00
#2 24710-MFL-D20

ARM COMP, GEAR CHANGE

Price €166.03
#4 24720-MFL-D20

PEDAL COMP, GEAR CHANGE

Price €109.03
#6 35357-MBR-000

SPRING, STOP SWITCH

Price €6.34
#9 46500-MFL-D20

PEDAL COMP, RR BRAKE

Price €164.35
#10 46515-MBW-000

SPRING ASSY, BRAKE PEDAL

Price €16.74
#11 90113-MCF-000

BOLT, CHANGE PIVOT

Price €12.73
#14 90165-MFL-D20

BAR, CHANGE

Price €46.07
#16 90201-700-000

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

Price €0.85
#18 90505-MBW-000

WASHER, CHANGE PEDAL WAVE

Price €5.17
#19 90557-230-000

WASHER, 152X25

Price €6.56
#20 90601-KAF-003

CLIP, SWITCH COVER

Price €4.34
#21 94001-060200S

NUT, HEX, 6MM

Price €1.16
#23 94103-08700

WASHER, PLAIN, 8MM

Price €0.62
#24 94511-15000

CIRCLIP, EXTERNAL, 15MM

Price €0.91
#5 35350-MKF-D41

SWITCH ASSY, RR STOP

Price €89.54
#13 90161-GHB-650

BOLT, FLANGE, 6X20

Price €5.84
