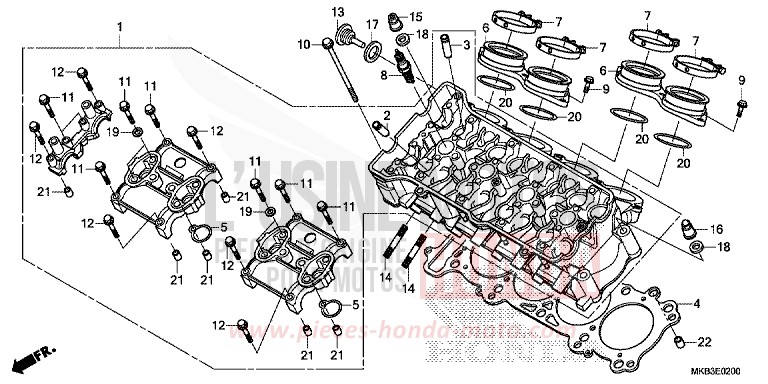

CYLINDER HEAD for CBR1000 VIBRANT ORANGE (YR250X) from 2015

CYLINDER HEAD for CBR1000 VIBRANT ORANGE (YR250X) from 2015
Reference
Product name
#1 12010-MGP-D60 i

HEAD ASSY, CYLINDER

Price €3,550.30
#2 12204-MBW-305

GUIDE, IN VALVE (OS) (EXHAUST SIDE)

Price €33.25
#3 12204-MFL-305

GUIDE, VALVE (OS)

Price €38.62
#4 12251-MFL-003 i

GASKET, CYLINDER HEAD

Price €163.94
#5 12395-MBW-003 i

GASKET, PLUG HOLE

Price €7.68
#6 16210-MGP-D60

INSULATOR COMP, THROTTLE BODY

Price €124.12
#7 16218-MFL-000

BAND, INSULATOR

Price €25.06
#8 31912-MFL-003 i

PLUG, SPARK (IMR9E-9HES) (NGK)

Price €30.89
#8 31922-MEL-003

PLUG, SPARK (VUH27ES) (DENSO)

Price €46.32
#9 90004-GHB-630 i

BOLT, FLANGE, 6X16 (NSHF)

Price €5.21
#10 90012-MFL-000

BOLT, FLANGE, 6X105

Price €10.25
#11 90016-KT7-000

BOLT, FLANGE, 6X37

Price €5.21
#12 90018-425-000

BOLT, FLANGE, 6X48

Price €6.82
#13 90023-MFL-000

SHAFT B, CAM CHAIN TENSIONER

Price €41.41
#14 90035-MM5-000

BOLT, STUD, 8X24

Price €7.31
#15 90232-MFL-000

NUT, SPECIAL, 9MM

Price €12.91
#16 90234-MFL-000

NUT, SPECIAL CAP, 9MM

Price €17.74
#17 90403-MFL-000

WASHER, SEALING, 24MM

Price €5.99
#18 90405-MFL-000

WASHER, PLAIN, 9MM

Price €7.48
#19 90463-ML7-000 i

WASHER, SEALING, 65MM

Price €4.62
#20 91301-MEL-003 i

O-RING, 437X25

Price €12.04
#21 94301-08200 i

DOWEL PIN, 8X20

Price €2.05
#22 94301-10160 i

DOWEL PIN, 10X16

Price €2.38
