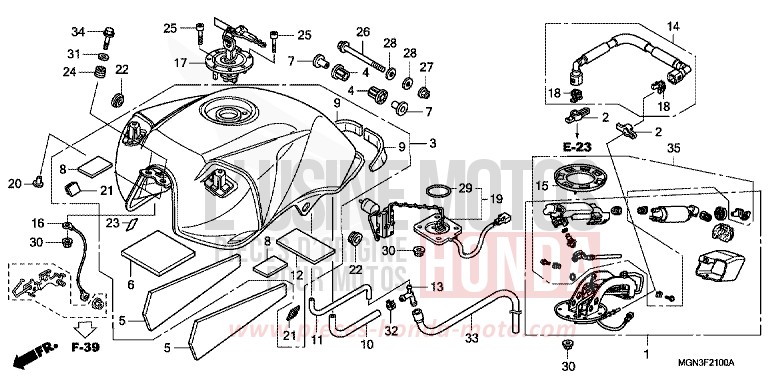

FUEL TANK/FUEL PUMP (CBF600S/SA) for CBF600S PEARL SIENA RED (R320) from 2010

FUEL TANK/FUEL PUMP (CBF600S/SA) for CBF600S PEARL SIENA RED (R320) from 2010
Reference
Product name
#1 16700-MFN-D01

PUMP ASSY, FUEL

Price €1,146.29
#2 16719-MFJ-D00

DAMPER, CONNECTEUR

Price €7.91
#4 17506-MCZ-000

BUSHING, TANK OF FUEL PIVOT REAR

Price €16.22
#5 17515-MFG-D00

TAPIS, LATERAL TANK FUEL

Price €21.06
#6 17516-MFG-D00

TAPIS, CENTRE TANK OF FUEL

Price €11.59
#7 17517-MCZ-000

BAND OF FIXING OF TANK

Price €12.07
#8 17535-KCZ-300

STRIPE, BOUCLIER TANK

Price €15.19
#9 17536-MER-D00

STRIPE, BOUCLIER TANK

Price €18.98
#10 17543-MFG-D00

PIPE OF DRAIN

Price €15.47
#11 17544-MFG-D00

PIPE OF RESPIRATION

Price €13.27
#12 17556-MEL-300

FILM A, PROTECTOR

Price €39.67
#13 17559-MEL-D20

RACCORD A TROIS VOIES

Price €14.83
#14 17570-MFG-D01 i

FUEL FEED HOSE COMP.

Price €180.38
#15 17574-MCF-000

GASKET OF BASE

Price €22.20
#16 17575-MFG-D00

CABLE, TANK OF FUEL STOPPER

Price €6.16
#17 17620-MAS-E03 i

PLUG COMP. REMPLISSAGE FUEL

Price €269.63
#18 17711-S0X-931 i

FIXING (VERT BLEUTE) (TOKAI)

Price €2.99
#19 37080-MER-305

FUEL UNIT SET

Price €222.26
#20 61104-422-000 i

FESTSTELLHUELSE

Price €11.51
#21 64215-MER-R60

PIECE OF SERRAGE A, VERROUILLAGE JUMELE 30X30

Price €14.41
#22 83551-300-000 i

AIR FILTER HOUSING RING

Price €10.69
#23 83607-MR8-300

RUBAN

Price €3.59
#24 84703-425-000 i

MOUNTING RUBBER, SCHLUSS- LICHT

Price €10.22
#25 90074-MT4-000 i

BOLT OF SOCKET, 4X21

Price €5.59
#26 90105-MER-R60

FLANGE BOLT, 6X100

Price €8.62
#27 90301-473-003 i

NUT U, 6MM (FUSE RASHI)

Price €11.29
#28 90525-428-900 i

WASHER PLATE, 6MM

Price €6.26
#29 91305-MC7-000 i

O-RING, 39.5X5

Price €10.12
#30 94050-06080 i

FLANGE NUT, 6MM

Price €1.20
#31 94103-06000 i

WASHER PLATE, 6MM

Price €0.85
#32 95002-4125008

SCHLAUCHKLAMMER (D125)

Price €1.50
#33 95005-8068020

TUBE, 8X680 (95005-80001-20M)

Price €21.97
Contact us
#34 96001-0602807 i

FLANGE BOLT, 6X28

Price €1.50
#35 16011-MGJ-D00 i

ASSY. FILTER A FUEL

Price €607.09
#3 17500-MGN-D00ZD

TANK SET, FUEL (WL) TYPE4 (TYPE4 )

Price €1,247.82
