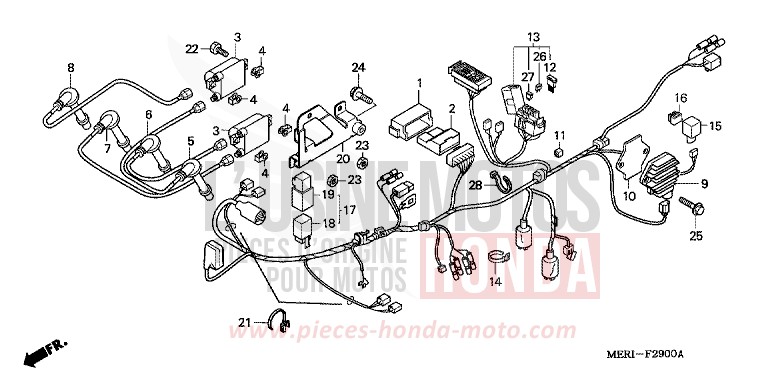

WIRE HARNESS (CBF600S/SA) for CBF600S EXCALIBUR GRAY METALLIC (NHA13) from 2004

WIRE HARNESS (CBF600S/SA) for CBF600S EXCALIBUR GRAY METALLIC (NHA13) from 2004
Reference
Product name
#1 30405-MBT-610

CUSHION D'UNIT D'IGNITION

Price €17.95
#2 30410-MER-D01

UNIT D'IGNITION

Price €1,167.74
#3 30510-MCC-003

COIL COMP. IGNITION

Price €160.75
#4 30520-ML7-000

IGNITION COIL SPACER

Price €8.32
#5 30751-MER-D00

ASSY. CAP D'HAUTE TENSION (1)

Price €73.62
Contact us
#6 30752-MER-D00

ASSY. CAP D'HAUTE TENSION (2)

Price €73.62
#7 30753-MER-D00

ASSY. CAP D'HAUTE TENSION (3)

Price €73.62
#8 30754-MER-D00

ASSY. CAP D'HAUTE TENSION (4)

Price €73.62
#9 31600-KFG-861 i

RECTIFIER ASSY, REGULATE (DUCATI ENERGIA)

Price €218.78
#10 31601-MBZ-G00

PLATE OF REDRESSEUR OF CONTROLE

Price €28.33
#11 31700-MM8-610

RECTIFICATEUR COMP. SILICIUM

Price €42.31
#12 31730-MAS-601 i

DIODENEINHEIT, DREIWEG (SUMITOMO)

Price €22.76
#13 32100-MER-D00

HARNESS, WIRE

Price €540.41
#14 32161-404-610

STRIPE B1 OF CABLE

Price €9.95
#15 38301-MEG-000

RELAIS COMP. TURN SIGNAL (MITSUBA)

Price €58.76
#16 38306-KK4-000

RUBBER D'DAMPER OF CENTER CLIGNOTANTE (MITSUBA)

Price €9.01
#17 38500-GC7-612 i

RELAY ASSY, STARTER

Price €57.42
#18 38501-GN2-014 i

STARTER MOTOR RELAY COMP. (MITSUBA)

Price €52.51
#19 38506-GC7-611

STARTER MOTOR RELAY BRACKET (MITSUBA)

Price €13.60
#20 50191-MER-D00

SUPPORT COMP COIL D'IGNITION

Contact us
#21 90690-GHB-601

CLIP OF STRIPE OF HARNESS (15)

Price €2.08
#22 92101-060204J i

BOLT HEX., 6X20

Price €1.81
#23 94001-060000S i

NUT HEX., 6MM

Price €1.19
#24 95701-0602008 i

FLANGE BOLT, 6X20

Price €1.15
#25 95701-0602200 i

FLANGE BOLT, 6X22

Price €1.42
#26 98200-41000

MINI-FUSE (10A)

Price €1.25
#27 98200-42000

MINI-FUSE (20A)

Price €1.25
#28 90650-KW3-000

WIRE BAND

Price €9.46
