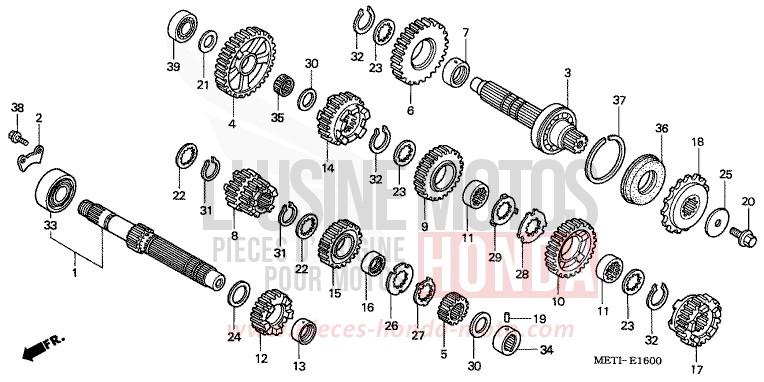

TRANSMISSION for CBF500 FORCE SILVER METALLIC (NH411) from 2004

TRANSMISSION for CBF500 FORCE SILVER METALLIC (NH411) from 2004
Reference
Product name
#1 23210-MY5-E00

MAINSHAFT COMP (13T)

Contact us
#2 23212-KE7-000

PLATE, BEARING SETTING

Price €13.79
#3 23220-MET-640

COUNTERSHAFT COMP

Price €489.94
Contact us
#4 23421-MY5-720

GEAR, COUNTERSHAFT LOW (45T)

Price €182.78
#5 23431-MY5-850

GEAR, MAINSHAFT SECOND (17T)

Contact us
#6 23441-MY5-850

GEAR, COUNTERSHAFT SECOND (38T)

Price €175.86
#7 23442-MM4-000

COLLAR, 28MM

Price €23.38
#8 23451-MY5-720

GEAR, MAINSHAFT THIRD &amp FOURTH (20T/23T)

Price €290.53
#9 23461-MY5-850

GEAR, COUNTERSHAFT THIRD (35T)

Price €167.92
Contact us
#10 23481-MY5-720

GEAR, COUNTERSHAFT FOURTH (34T)

Price €164.87
#11 23482-MV9-670

COLLAR, SPLINE, 28X31X9

Price €29.82
#12 23491-MY5-720

GEAR, MAINSHAFT FIFTH (25T)

Price €212.51
#13 23492-KY2-000

COLLAR, 25X28X11

Price €21.44
#14 23501-MET-640

GEAR, COUNTERSHAFT FIFTH (32T)

Contact us
#15 23511-MY5-720

GEAR, MAINSHAFT SIXTH (23T)

Price €179.03
#16 23512-KY2-000

COLLAR, SPLINE, 25X124

Price €19.24
#17 23521-MET-640

GEAR, COUNTERSHAFT SIXTH (26T)

Price €195.62
#18 23801-KY2-005

SPROCKET, DRIVE (15T)

Price €60.44
#19 24261-283-000

PIN, GEARSHIFT FORK GUIDE

Price €7.90
#20 90037-422-003

BOLT, SPECIAL, 10MM

Price €10.03
#21 90403-KE7-000

WASHER, THRUST, 172MM

Price €8.48
#22 90451-KY2-000

WASHER, SPLINE, 25X31X15

Price €5.34
#23 90452-MR7-000

WASHER, SPLINE, 28X34X15

Price €5.57
#24 90456-MA6-000

WASHER, THRUST, 25MM

Price €3.02
#25 90459-438-000

WASHER, 102MM

Price €7.37
#26 90461-KY2-000

WASHER, SPLINE, 25MM

Price €7.51
#27 90462-KAZ-000

WASHER, LOCK, 25MM

Price €10.06
#28 90463-MR7-000

WASHER, SPLINE, 28MM

Price €10.72
#29 90464-MR7-000

WASHER, LOCK, 28MM

Price €10.57
#30 90554-700-000

WASHER, THRUST, 20MM

Price €1.58
#31 90601-107-000

CIRCLIP, 25MM

Price €5.35
#32 90603-MN4-000

CIRCLIP, 28MM

Price €7.90
#33 91014-969-003

BEARING, RADIAL BALL, 5205 (NTN)

Price €39.44
#34 91023-MM4-003

BEARING, NEEDLE, 20X34X168 (NTN)

Price €50.48
#35 91023-MY5-851

BEARING, NEEDLE, 20X24X96

Price €27.53
#36 91207-KT8-003

OIL SEAL, 34X62X8

Price €15.18
#37 94560-62200

RING, SNAP, 62MM

Price €3.13
#38 95701-0601400

BOLT, FLANGE, 6X14

Price €1.13
#39 96140-6203000

BEARING, RADIAL BALL, 6203U

Price €19.12
