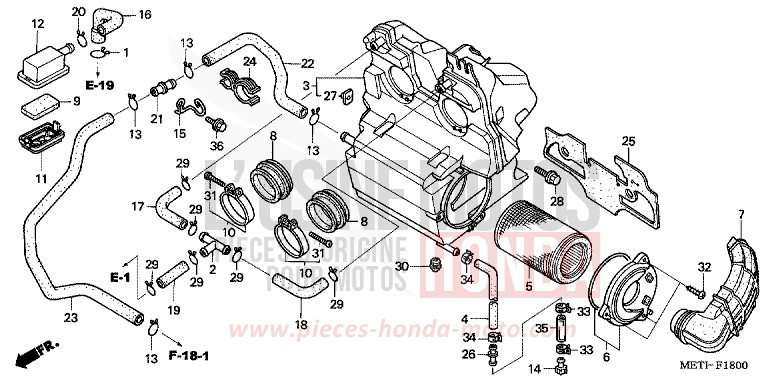

AIR CLEANER for CBF500 EMERGENCY RED METALLIC (R311) from 2006

AIR CLEANER for CBF500 EMERGENCY RED METALLIC (R311) from 2006
Reference
Product name
#1 15772-GB5-670

CLIP, DRAIN TUBE (B20)

Price €7.03
#2 15772-376-000

JOINT, BREATHER THREE WAY

Price €24.32
#3 17221-MET-640

CASE COMP, AIR CLEANER

Price €46.72
#4 17222-MET-640

TUBE, AIR CLEANER DRAIN

Price €18.30
#5 17230-MBZ-K00

ELEMENT, AIR CLEANER

Price €49.08
#6 17231-MBZ-G00

COVER, AIR CLEANER

Price €35.94
#7 17232-MBZ-G00

DUCT, AIR CLEANER

Price €103.52
#8 17253-MY5-610

TUBE, AIR CLEANER CONNECTING

Price €41.46
#9 17254-KAZ-000

FILTER, SUB AIR CLEANER

Price €4.27
#10 17255-MY5-860

BAND, AIR CLEANER CONNECTING TUBE (60)

Price €2.72
#11 17256-MBZ-K00

COVER, SUB AIR CLEANER

Price €19.86
#12 17257-MBZ-K00

CASE, SUB AIR CLEANER

Price €17.18
#13 17369-KB4-670

CLIP, BREATHER TUBE

Price €5.38
#14 17370-419-700

PLUG, BREATHER TUBE

Price €6.19
#15 17552-MET-640

WIRE, SUB AIR CLEANER

Contact us
#16 17553-MET-640

TUBE, AIR JET

Price €35.90
#17 17554-MET-640

TUBE, R BREATHER

Price €20.95
#18 17555-MET-640

TUBE, L BREATHER

Price €21.61
#19 17556-MET-640

TUBE, FR BREATHER

Price €6.56
#20 17724-102-700

CLIP, SUB TANK HOSE

Price €5.20
#21 18631-MAH-710

JOINT, TWO WAY

Price €21.26
#22 18641-MET-640

TUBE, RR AIR

Price €29.39
#23 18643-MET-640

TUBE, FR AIR

Price €46.97
#24 18645-MET-641

CLAMP, PIPE

Contact us
#25 19040-MET-640

RUBBER, HEAT GUARD

Contact us
#26 19102-KT8-000

JOINT, TUBE

Price €9.01
#27 61304-HB3-003

NUT, SPECIAL, 6MM

Price €4.80
#28 90111-162-000

BOLT, FLANGE, 6MM

Price €5.76
#29 90646-657-000

CLIP, AIR HOSE, 16MM

Price €4.67
#30 90899-385-000

PLUG, CONE

Price €11.29
#31 93500-040200A

SCREW, PAN, 4X20

Price €0.73
#32 93903-25580

SCREW, TAPPING, 5X25

Price €0.86
#33 95002-4105008

CLAMP, TUBE (D105)

Price €1.48
#34 95002-4120008

CLAMP, TUBE (D12)

Price €1.91
#35 95003-2301031

TUBE, VINYL, 8X12X100 (95003-23001-60M)

Price €1.49
Contact us
#36 95701-0601008

BOLT, FLANGE, 6X10

Price €1.06
