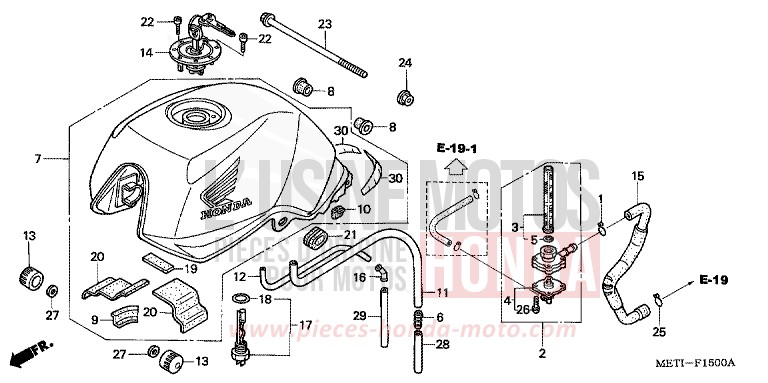

FUEL TANK for CBF500 EMERGENCY RED METALLIC (R311) from 2006

FUEL TANK for CBF500 EMERGENCY RED METALLIC (R311) from 2006
Reference
Product name
#1 15707-634-000

CLIP, OIL DRAIN TUBE

Price €4.28
#2 16950-MER-D01

COCK ASSY, FUEL AUTO

Price €142.82
#3 16952-MBT-611

SCREEN SET, FUEL STRAINER

Price €44.28
#4 16953-KEA-000

COVER SET, COCK

Price €89.05
#5 16958-KM9-005

O-RING

Price €6.34
#6 17359-419-670

JOINT, BREATHER TUBE

Price €4.37
#7 17500-MET-D20ZB

TANK SET, FUEL (WL) TYPE2 (TYPE2 )

Price €832.61
#8 17506-MER-D01

CUSHION, FUEL TANK RR PIVOT

Price €3.96
#9 17535-MBZ-G00

TAPE, TANK GUARD

Price €7.06
#10 17535-MER-D00

RUBBER, PROTECTOR

Price €5.64
#11 17543-MCZ-000

TUBE, DRAIN

Price €47.23
Contact us
#12 17544-MBG-000

TUBE, BREATHER

Price €22.22
Contact us
#13 17611-425-000

CUSHION, FR FUEL TANK

Price €14.83
#14 17620-MAS-E02

CAP COMP, FUEL FILLER

Price €269.63
#15 17681-MET-640

TUBE, FUEL

Price €34.28
Contact us
#16 19103-ML7-000

JOINT, TUBE

Price €9.90
#17 37810-MER-D00

SENSOR, FUEL RESERVE

Price €191.21
#18 37811-MB1-008

PACKING, FUEL RESERVE SENSOR

Price €3.53
#19 64382-MET-640

TAPE, COVER

Price €3.44
#20 80106-MBG-300

MAT, PGM-FI UNIT

Price €11.05
#21 83551-300-000

GROMMET, AIR CLEANER CASE

Price €9.37
#22 90074-MT4-000

BOLT, SOCKET, 4X21

Price €5.87
#23 90135-MER-D01

BOLT, TANK HINGE

Price €10.88
#24 90301-473-003

NUT, U, 6MM (FUSE RASHI)

Price €7.24
#25 90652-MB1-000

CLIP, TUBE

Price €4.14
#26 93892-0401618

SCREW-WASHER, 4X16

Price €0.84
#27 94103-10000

WASHER, PLAIN, 10MM

Price €1.21
#28 95005-8022050

TUBE, 8X220 (95005-80001-50M)

Contact us
#29 95005-8040020

TUBE, 8X400 (95005-80001-20M)

Price €11.89
Contact us
#30 17536-MER-D00

TAPE, TANK GUARD

Price €15.86
