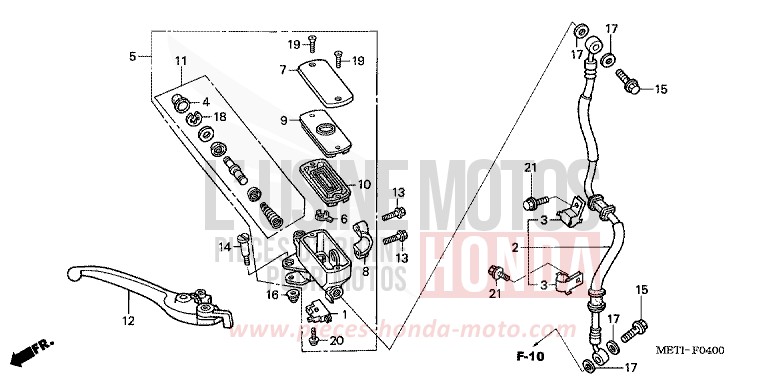

FR. BRAKE MASTER CYLINDER (CBF500) for CBF500 EMERGENCY RED METALLIC (R311) from 2006

FR. BRAKE MASTER CYLINDER (CBF500) for CBF500 EMERGENCY RED METALLIC (R311) from 2006
Reference
Product name
#1 35340-MM5-600

SWITCH ASSY, FR STOP

Price €44.35
#2 45125-MET-641

HOSE COMP, FR BRAKE

Price €67.03
Contact us
#3 45159-MBZ-K00

CLAMPER, BRAKE HOSE

Price €10.51
#4 45504-410-003

BOOT COMP

Price €15.22
#5 45510-MW3-671

CYLINDER SUB ASSY, FR BRAKE MASTER

Price €258.20
#6 45512-MA6-006

PROTECTOR

Price €74.21
#7 45513-MM5-016

CAP, MASTER CYLINDER (NISSIN)

Price €52.61
#8 45517-166-006

HOLDER, MASTER CYLINDER

Price €22.57
#9 45518-MM5-006

PLATE, DIAPHRAGM

Price €15.23
#10 45520-MM5-006

DIAPHRAGM

Price €33.04
#11 45530-MN9-305

CYLINDER SET, MASTER

Price €69.78
#12 53170-MBR-J11

LEVER ASSY, R HANDLE

Price €78.05
#13 90101-MBZ-G00

BOLT, FLANGE, 6X22

Price €3.98
#14 90114-MA5-671

BOLT, HANDLE LEVER PIVOT

Price €11.93
#15 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#16 90201-415-000

NUT, CAP, 6MM

Price €5.94
#17 90545-300-000

WASHER, OIL BOLT

Price €6.41
#18 90651-MA5-671

CIRCLIP

Price €5.83
#19 93600-040121G

SCREW, FLAT, 4X12

Price €0.76
#20 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#21 96001-0601207

BOLT, FLANGE, 6X12

Price €1.22
