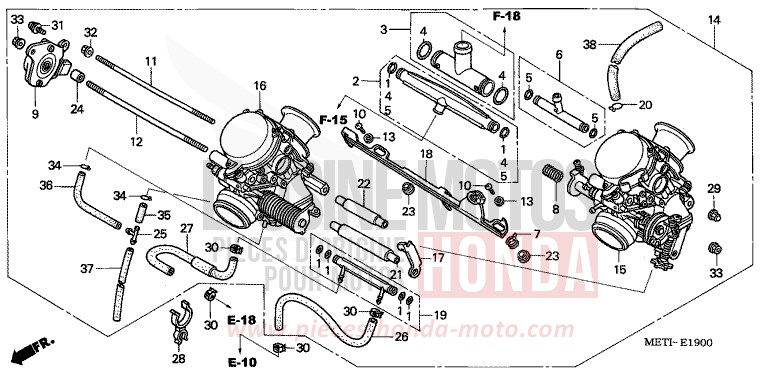

CARBURETOR (ASSY.) for CBF500 EMERGENCY RED METALLIC (R311) from 2006

CARBURETOR (ASSY.) for CBF500 EMERGENCY RED METALLIC (R311) from 2006
Reference
Product name
#1 16010-MET-641

GASKET SET D

Price €43.26
#2 16024-MET-641

JOINT SET

Price €58.67
#3 16027-MZ5-600

JOINT SET

Price €59.02
Contact us
#4 16039-MZ1-790

GASKET SET C

Price €53.46
#5 16040-MZ1-790

GASKET SET B

Price €26.82
#6 16047-MET-641

JOINT SET

Price €58.67
#7 16051-MZ5-670

SPRING, TORSION COIL

Price €39.84
Contact us
#8 16053-MA6-003

SPRING, COMPRESSION COIL

Price €19.00
#9 16060-MET-641

SENSOR SET, THROTTLE

Price €341.64
#10 16081-KAZ-000

SCREW, TRUSS, 4X8

Price €3.50
#11 16083-MET-641

BOLT

Contact us
#12 16084-MET-641

BOLT

Contact us
#13 16085-MV4-000

WASHER, PLAIN

Price €4.00
#14 16100-MET-643

CARBURETOR ASSY (VPN0P B)

Price €1,945.39
Contact us
#14 16100-MET-673

CARBURETOR ASSY (VPN0P Q)

Contact us
#15 16101-MET-643

CARBURETOR ASSY, L

Price €920.50
Contact us
#15 16101-MET-672

CARBURETOR ASSY, L

Contact us
#16 16102-MET-643

CARBURETOR ASSY, R

Price €941.23
#16 16102-MET-672

CARBURETOR ASSY, R

Contact us
#17 16119-MBZ-610

PLATE, BYSTARTER STAY

Contact us
#18 16120-MET-641

LEVER, STARTER

Contact us
#19 16136-MET-641

JOINT SET

Price €66.67
#20 16163-MB3-671

CLIP, TUBE

Price €1.68
#21 16172-MET-641

COLLAR

Price €27.85
#22 16173-MET-641

COLLAR

Contact us
#23 16175-MZ1-000

COLLAR

Price €40.58
#24 16178-MBZ-K31

DOWEL PIN, 79X124

Price €10.91
#25 16180-195-731

T-JOINT

Price €16.86
#26 16197-MET-641

HOSE, HEATER

Price €42.01
#27 16198-MET-641

HOSE COMP, HEATER

Price €42.01
#28 16965-MET-640

CLAMPER ASSY, TUBE

Contact us
#29 90303-GC2-630

NUT, FLANGE CAP, 5MM

Price €8.47
#30 91406-SL4-931

CLAMP, FUEL HOSE (D105)

Price €5.11
#31 93892-0501010

SCREW-WASHER, 5X10

Price €0.84
#32 94050-05000

NUT, FLANGE, 5MM

Price €0.86
#33 94050-06000

NUT, FLANGE, 6MM

Price €0.78
#34 95002-02089

CLIP, TUBE (B1 8)

Price €0.86
#35 95005-4505050

TUBE, 45X50 (95005-45001-50M)

Contact us
#36 95005-4519050

TUBE, 45X190 (95005-45001-50M)

Contact us
#37 95005-4547050

TUBE, 45X470 (95005-45001-50M)

Contact us
#38 95005-7023050

TUBE, 7X230 (95005-70001-50M)

Contact us
