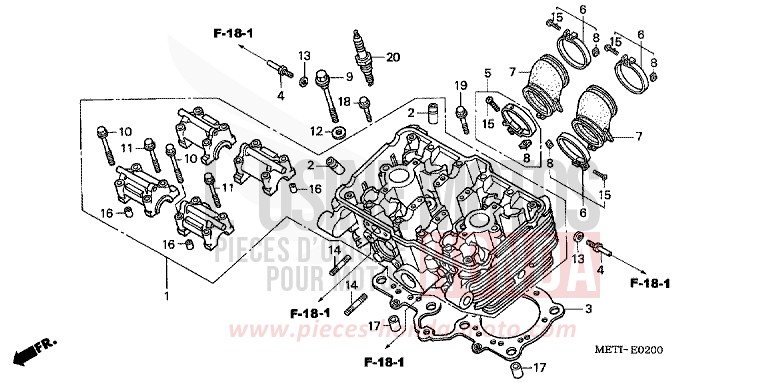

CYLINDER HEAD for CBF500 BLACK (NH1) from 2004

CYLINDER HEAD for CBF500 BLACK (NH1) from 2004
Reference
Product name
#1 12010-MET-640 i

HEAD ASSY, CYLINDER

Contact us
#1 12010-MET-641 i

HEAD ASSY, CYLINDER

Contact us
#2 12204-MT4-305

GUIDE, VALVE (OS)

Price €36.59
#3 12251-MY5-601 i

GASKET, CYLINDER HEAD

Price €117.64
#4 16214-MB0-000

CONNECTOR OF POUSSEE

Price €11.48
#5 16218-MET-640

BAND, INSULATOR

Price €18.84
#6 16218-MV9-670

STRIPE B, ISOLATEUR

Price €17.38
#7 16221-MY5-601 i

INSULATOR, L CARBURETOR

Price €30.59
#8 16222-MV4-300

NUT, VIERKANT, 5MM

Price €4.88
#9 90007-ML7-920

BOLT, FLANGE, 9X93

Price €18.54
#10 90017-MA6-000

FLANGE BOLT, 6X45.5

Price €6.46
#11 90019-MA6-000

FLANGE BOLT, 6X39.5

Price €6.46
#12 90445-MM4-000

WASHER 9MM

Price €7.48
#13 90452-323-000

WASHER SEALING, 5MM

Price €5.99
#14 92900-060220E i

STUD, 6X22

Price €1.50
#15 93500-050280G

CYLINDRICAL HEAD SCREW, 5X28

Price €0.88
#16 94301-08140 i

STUD, 8X14

Price €2.05
#17 94301-12200 i

DOWEL PIN, 12X20

Price €2.08
#18 95701-0602500 i

FLANGE BOLT, 6X25

Price €1.34
#19 95701-0603000 i

FLANGE BOLT, 6X30

Price €1.42
#20 98059-589J6 i

PLUG, SPARK (CR8EH-9S)

Price €15.14
#20 98059-589K6

PLUG, SPARK (U24FER9S)

Price €15.14
