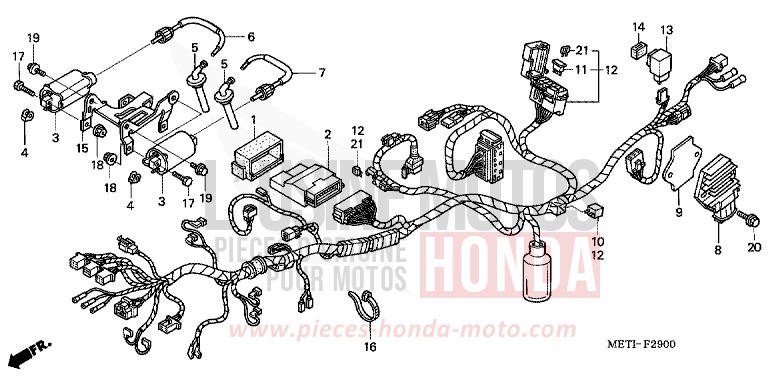

WIRE HARNESS for CBF500 BLACK (NH1) from 2004

WIRE HARNESS for CBF500 BLACK (NH1) from 2004
Reference
Product name
#1 30405-MBT-610

CUSHION, SPARK UNIT

Price €14.30
#2 30410-MET-642

SPARK UNIT COMP

Price €548.75
#3 30500-ML7-013

COIL COMP, IGNITION

Price €142.06
#4 30520-ML7-000

SPACER, IGNITION COIL

Price €8.63
#5 30700-KAF-010

CAP ASSY, NOISE SUPPRESSOR

Price €48.50
#6 30731-MET-640

CORD, HIGH TENSION (1)

Price €36.43
#7 30732-MET-640

CORD, HIGH TENSION (2)

Price €36.43
#8 31600-KFG-862

RECTIFIER ASSY, REGULATE (DUCATI ENERGIA)

Price €239.70
#9 31601-MBZ-G00

PLATE, REGULATE RECTIFIER

Price €12.59
#10 31700-MM8-610

RECTIFIER COMP, SILICON

Price €47.05
#11 31730-MAS-601

DIODE ASSY, THREE WAY (SUMITOMO)

Price €48.62
#12 32100-MET-641

HARNESS, WIRE

Price €528.52
#13 38301-MEG-000

RELAY COMP, WINKER (MITSUBA)

Price €83.32
#14 38306-KK4-000

SUSPENSION, WINKER RELAY (MITSUBA)

Price €8.46
#15 50191-MET-640

STAY COMP, IGNITION COIL

Price €19.12
#16 90650-KV6-003

BAND, WIRE, 95MM

Price €7.55
#17 92101-060224J

BOLT, HEX, 6X22

Price €3.61
#18 94050-06080

NUT, FLANGE, 6MM

Price €1.18
#19 95701-0601208

BOLT, FLANGE, 6X12

Price €1.06
#20 95701-0602200

BOLT, FLANGE, 6X22

Price €1.39
#21 98200-41000

FUSE, MINI (10A)

Price €1.22
