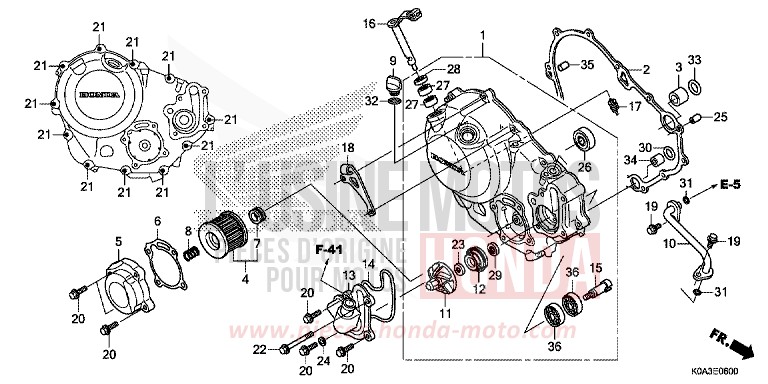

RIGHT CRANKCASE COVER for CBF300NA NOIR (NH1) from 2018

RIGHT CRANKCASE COVER for CBF300NA NOIR (NH1) from 2018
Reference
Product name
#3 15326-KT7-000

COLLAR, OIL PATH, 18MM

Price €5.82
#7 15413-MC8-000

RUBBER, FILTER

Price €5.21
#8 15414-KF0-000

SPRING, OIL FILTER ELEMENT SETTING

Price €6.13
#9 15611-KA4-710

CAP, OIL FILLER

Price €20.74
#11 19215-KGH-900

IMPELLER, WATER PUMP

Price €16.56
#12 19217-P72-013

SEAL, MECHANICAL

Price €67.56
#17 22815-KM7-700

SPRING, CLUTCH LEVER

Price €5.53
#20 90012-KYJ-900

BOLT, FLANGE, 6X25 (NSHF)

Price €3.74
#23 90423-KW6-900

WASHER, 7X13X12

Price €3.44
#24 90463-ML7-000

WASHER, SEALING, 65MM

Price €5.84
#25 90702-KFM-900

DOWEL PIN, 8X12

Price €3.11
#27 91053-719-005

BEARING, NEEDLE, 12X16X10 (NTN)

Price €25.01
#28 91204-KK0-003

OIL SEAL, 12X18X5 (ARAI)

Price €7.61
#29 91202-KTW-901

OIL SEAL, 12X26X5

Price €7.36
#32 91307-035-000

O-RING, 18X3

Price €2.27
#34 94301-12160

PIN A, DOWEL, 12X16

Price €2.04
#35 94302-08140

PIN B, DOWEL, 8X14

Price €2.41
#1 11300-K33-D02

COVER ASSY, R CRANKCASE

Price €291.95
#2 11394-KYJ-900

GASKET, R CRANKCASE COVER

Price €15.89
#4 15410-KYJ-902

ELEMENT, OIL FILTER

Price €11.86
#5 15411-KYJ-900

COVER, OIL FILTER

Price €102.16
#6 15412-KYJ-901

GASKET, OIL FILTER COVER

Price €9.96
#10 19120-KYJ-900

PIPE COMP, WATER

Price €23.33
#13 19220-KYJ-900

COVER COMP, WATER PUMP

Price €92.54
#14 19226-KYJ-901

GASKET, WATER PUMP COVER (ARAI)

Price €8.08
#15 19241-KZZ-D20

SHAFT, WATER PUMP

Price €120.77
#16 22810-K0A-E10

LEVER COMP, CLUTCH

Price €24.29
#18 22821-K0A-E10

RECEIVER, CLUTCH CABLE

Price €12.53
#19 90010-KYJ-900

BOLT, FLANGE, 6X16 (NSHF)

Price €3.74
#21 90013-KYJ-900

BOLT, FLANGE, 6X30 (NSHF)

Price €3.74
#22 90015-KYJ-900

BOLT, FLANGE, 6X65 (NSHF)

Price €4.61
#26 91009-KYJ-901

BEARING, RADIAL BALL SPECIAL, 6001U

Price €41.09
#30 91301-KYJ-901

O-RING, 118X19 (ARAI)

Price €3.34
#31 91302-KYJ-901

O-RING, 98X24 (ARAI)

Price €3.34
#33 91322-PT0-004

O-RING, 178X19 (ARAI)

Price €3.53
Contact us
#36 96100-6001300

BEARING, RADIAL BALL, 6001

Price €18.10
