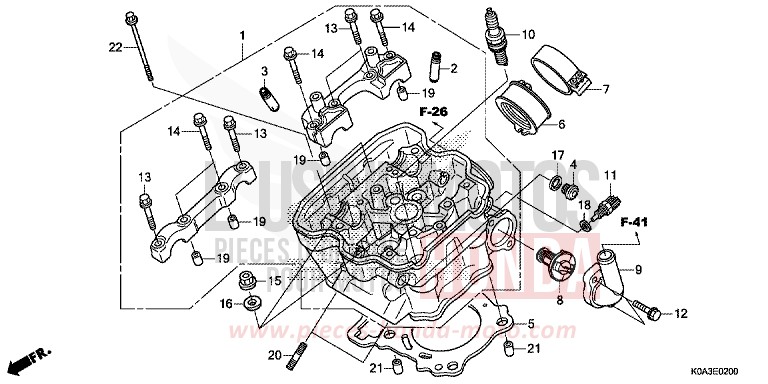

CYLINDER HEAD for CBF300NA NOIR (NH1) from 2018

CYLINDER HEAD for CBF300NA NOIR (NH1) from 2018
Reference
Product name
#2 12204-KYJ-305

GUIDE OF INTAKE VALVE (O.S.)

Price €24.78
#3 12205-KYJ-305

GUIDE OF VALVE EXHAUST (O.S.)

Price €24.78
#4 12207-KYJ-900

BOLT SEALING, 12MM

Price €3.25
#8 19300-KGF-911 i

ENS THERMOSTAT

Price €130.88
#11 37870-KRJ-901 i

ASSY. SENSOR, TEMPERATURE WATER

Price €75.68
#12 90011-KYJ-900

FLANGE BOLT, 6X22 (NSHF)

Price €2.98
#13 90017-KYJ-900

FLANGE BOLT, 6X32

Price €2.98
#14 90019-KYJ-900

FLANGE BOLT, 6X39.5

Price €2.98
#15 90204-634-000 i

FLANGE NUT, 10MM

Price €7.46
#17 90418-KYJ-900

WASHER, 12.2X17X1.5

Price €3.28
#18 90454-MC7-000

SPECIAL WASHER, 12MM

Price €5.99
#19 94301-08140 i

STUD, 8X14

Price €2.05
#20 92900-080223E

STUD, 8X22

Price €2.78
#21 94301-12160

STUD D'ASSEMBLAGE A, 12X16

Price €2.08
#1 12010-K33-T50

HEAD ASSY, CYLINDER

Price €482.81
#5 12251-KYJ-901

GASKET, CYLINDER HEAD (METAL GASKET)

Price €31.84
#6 16211-KYJ-901

INSULATOR, THROTTLE BODY

Price €14.33
#7 16217-KYJ-900

BAND, INSULATOR

Price €8.95
#9 19321-KYJ-900

COVER, THERMOSTAT

Price €28.98
#10 31916-MEH-003 i

PLUG, SPARK (SIMR8A9) (NGK)

Price €39.20
#16 90410-GCC-000

WASHER, 10MM

Price €0.98
#19 91105-KSP-910 i

DOWEL PIN, 8X14

Price €2.81
#22 95701-0612000

BOLT, FLANGE, 6X120

Price €1.61
