FRAME BODY 🏍️ CBF300NA

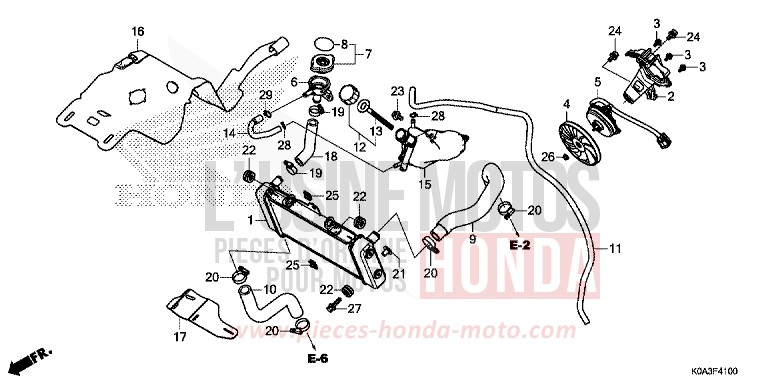

RADIATOR for CBF300NA CANDY CHROMOSPHERE RED (R381) from 2018

RADIATOR for CBF300NA CANDY CHROMOSPHERE RED (R381) from 2018
Reference
Product name
#1 19010-K0A-E11

RADIATOR COMP

Price €568.73
#2 19015-K0A-E11

SHROUD COMP

Price €24.94
#3 19016-KEA-003

SCREW, PAN, 4X85

Price €5.90
#4 19020-KVZ-631

FAN COMP, COOLING

Price €95.21
#5 19030-K0A-E11

MOTOR COMP, FAN

Price €446.23
#6 19035-K94-T01

NECK, FILLER

Price €34.69
#7 19037-MCA-G61

CAP COMP, RADIATOR (TRAD)

Price €62.52
#8 19046-MCA-G61

LABEL, RADIATOR CAP (TRAD)

Price €12.17
#9 19062-K0A-E10

HOSE, RADIATOR UPPER

Price €60.22
#10 19067-K0A-E10

HOSE, RADIATOR LOWER

Price €42.20
#11 19104-K0A-E10

TUBE, RESERVE TANK BREATHER

Price €25.44
#12 19105-K94-T00

CAP ASSY, RESERVE TANK

Price €9.89
#13 19106-K94-T00

PACKING ASSY, RESERVE TANK

Price €7.85
#14 19107-K94-T00

TUBE, RADIATOR BREATHER

Price €11.35
#15 19110-K94-T00

TANK, RADIATOR RESERVE

Price €28.34
#16 19125-K0A-E10

RUBBER, HEAT GUARD

Price €22.68
#17 19127-K0A-E10

RUBBER, RADIATOR LOWER

Price €12.31
#18 19504-K94-T00

HOSE, FILLER NECK

Price €12.64
#19 19505-KS6-700

CLAMP A, WATER HOSE

Price €13.07
#20 19517-ML7-691

CLAMP, HOSE, 22-29MM

Price €13.28
#21 61102-KTY-D30

COLLAR, RADIATOR MOUNTING

Price €9.36
#22 61304-415-000

RUBBER, HEADLIGHT CASE MOUNTING

Price €7.38
#23 90116-KVB-900

BOLT, FLANGE, 6MM

Price €4.78
#24 90120-KCR-003

BOLT-WASHER, 6X16

Price €8.38
#25 90201-KPR-901

NUT, CLIP, 6MM

Price €3.89
#26 90315-MFL-003

NUT, FLANGE, 3MM

Price €5.09
#27 93404-0602507

BOLT-WASHER, 6X25

Price €1.22
#28 95002-02100

CLIP, TUBE (B10)

Price €1.06
#29 95002-02120

CLIP, TUBE (B12)

Price €1.06
