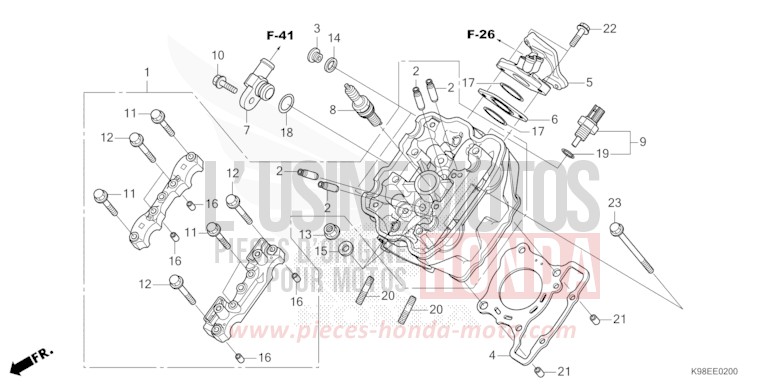

CYLINDER HEAD for CBF125N PEARL SPLENDOR RED (R369) from 2024

CYLINDER HEAD for CBF125N PEARL SPLENDOR RED (R369) from 2024
Reference
Product name
#1 12010-K98-E20

HEAD ASSY, CYLINDER

Price €1,256.53
#2 12205-KYJ-305

GUIDE, EX VALVE (OS)

Price €31.15
#3 12207-KYJ-900

BOLT, SEALING, 12MM

Price €9.14
#4 12251-K56-N02

GASKET, CYLINDER HEAD (NLK)

Price €27.58
#5 17110-K98-E20

PIPE COMP, IN

Price €101.62
#6 17119-K56-N00

INSULATOR, IN PIPE

Price €37.45
#7 19064-K98-E20

JOINT, WATER

Price €31.48
#8 31919-K25-601

PLUG, SPARK (MR9C-9N) (NGK)

Price €22.79
#9 37870-KZR-601

SENSOR ASSY, WATER TEMPERATURE...

Price €68.99
#10 90011-KYJ-900

BOLT, FLANGE, 6X22 (NSHF)

Price €3.74
#11 90017-K56-N00

BOLT, FLANGE, 6X32

Price €3.74
#12 90019-K56-N00

BOLT, FLANGE, 6X40

Price €3.74
#13 90202-KGB-610

NUT, FLANGE, 8MM

Price €3.16
#14 90418-KYJ-900

WASHER, 122X17X15

Price €3.96
#15 90483-K15-900

WASHER, 8MM

Price €4.03
#16 90702-KRM-840

DOWEL PIN, 8X14

Price €2.81
#16 94301-08140

DOWEL PIN, 8X14

Price €2.02
#17 91301-K56-N00

O-RING, IN PIPE

Price €4.43
#18 91301-KV7-671

O-RING, 148X19 (ARAI)

Price €6.88
#19 91307-PLC-004

O-RING, 95X19 (PANASONIC)

Price €4.76
#20 92900-080250E

BOLT, STUD, 8X25

Price €2.93
#21 94301-10120

DOWEL PIN, 10X12

Price €2.04
#22 95701-0602500

BOLT, FLANGE, 6X25

Price €1.32
#23 95701-0611500

BOLT, FLANGE, 6X115

Price €2.40
