BATTERY 🏍️ CBF125N
SUB HARNESS 🏍️ CBF125N

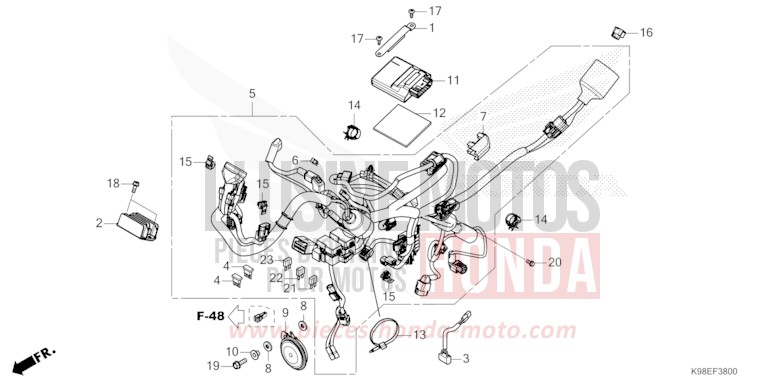

WIRE HARNESS for CBF125N MAT JEANS BLUE MATALLIC (PB417) from 2021

WIRE HARNESS for CBF125N MAT JEANS BLUE MATALLIC (PB417) from 2021
Reference
Product name
#1 17239-K98-E20

PLATE, PGM-FI UNIT SETTING

Price €7.48
#2 31600-K45-N41

RECTIFIER ASSY, REGULATE

Price €108.17
#3 31700-K98-E20

CONDENSER COMP

Price €32.04
#4 31730-MAS-601 i

DIODE ASSY, THREE WAY (SUMITOMO)

Price €22.76
#5 32100-K98-E20

HARNESS, WIRE

Price €393.28
#6 32146-S84-003

CONNECTOR, DIODE (2P) (3A)

Price €24.08
#7 32153-K0E-D51

COVER (WPC 48P 025 F)

Price €20.90
#8 33714-KL3-620

RUBBER, TAILLIGHT BRACKET

Price €7.60
#9 38110-K94-T01

HORN COMP (HIGH)

Price €37.60
#10 38112-K41-N00

COLLAR, HORN SETTING

Price €7.61
#11 38770-K98-E21

PGM-FI UNIT

Price €324.19
#12 38772-K98-E20

RUBBER, PGM-FI UNIT

Price €5.57
#13 90679-SG9-E01

BAND, SUCTION HOSE (BLACK)

Price €7.55
#14 90690-GHB-661 i

CLIP, CABLE, 20MM

Price €2.08
#15 91565-SEL-003

CLIP, COUPLER (BLACK)

Price €6.83
#16 91771-MKK-H11

CAP, DUMMY (6P) (RED)

Price €24.54
#17 93903-25310

SCREW, TAPPING, 5X16

Price €0.64
#18 95701-0601600 i

BOLT, FLANGE, 6X16

Price €1.18
#19 95701-0601807 i

BOLT, FLANGE, 6X18

Price €0.96
#20 96001-0601200 i

BOLT, FLANGE, 6X12

Price €1.25
#21 98200-40750

FUSE, MINI (75A)

Price €1.25
#22 98200-41000

FUSE, MINI (10A)

Price €1.25
#23 98200-42000

FUSE, MINI (20A)

Price €1.25
