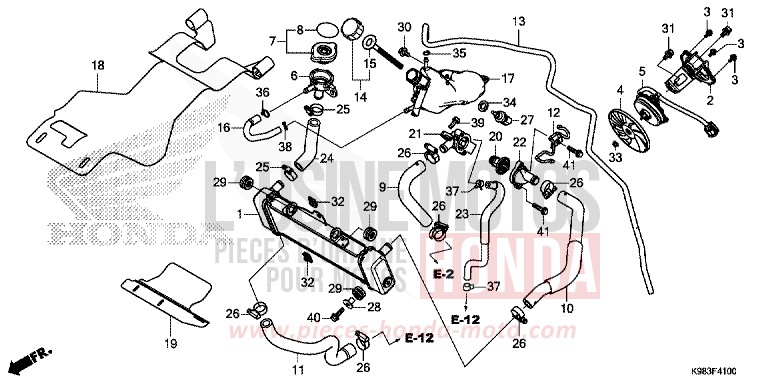

RADIATOR for CBF125N MAT AXIS GRAY METALLIC (NH303) from 2018

RADIATOR for CBF125N MAT AXIS GRAY METALLIC (NH303) from 2018
Reference
Product name
#1 19010-K94-T01

RADIATOR COMP (TRAD)

Price €364.52
#2 19015-K94-T01

SHROUD COMP

Price €22.28
#3 19016-KEA-003

SCREW, PAN, 4X85

Price €6.52
#4 19020-KPP-T01

FAN COMP, COOLING

Price €7.20
#5 19030-K94-T01

MOTOR COMP, FAN

Price €130.88
#6 19035-K94-T01

NECK, FILLER

Price €28.19
#7 19037-MCA-G61

CAP COMP, RADIATOR (TRAD)

Price €77.52
#8 19046-MCA-G61

LABEL, RADIATOR CAP (TRAD)

Price €14.70
#9 19061-K98-E00

HOSE, THERMOSTAT

Price €12.65
#10 19062-K98-E00

HOSE, RADIATOR UPPER

Price €23.95
#11 19063-K98-E00

HOSE, RADIATOR LOWER

Price €18.40
#12 19101-K98-E00

GUIDE COMP, THROTTLE CABLE

Price €12.53
#13 19104-K94-T00

TUBE, RESERVE TANK BREATHER

Price €17.57
#14 19105-K94-T00

CAP ASSY, RESERVE TANK

Price €10.56
#15 19106-K94-T00

PACKING ASSY, RESERVE TANK

Price €5.14
#16 19107-K94-T00

TUBE, RADIATOR BREATHER

Price €8.59
#17 19110-K94-T00

TANK, RADIATOR RESERVE

Price €21.13
#18 19125-K98-E00

RUBBER, HEAT GUARD

Price €29.16
#19 19127-K98-E00

RUBBER, RADIATOR LOWER

Price €12.32
#20 19300-GEE-003

THERMOSTAT

Price €89.59
#21 19311-KTY-D30

CASE COMP, THERMOSTAT

Price €36.56
#22 19315-KGH-900

COVER, THERMOSTAT

Price €12.54
#23 19320-K98-E00

TUBE A, THERMOSTAT CASE

Price €20.17
#24 19504-K94-T00

HOSE, FILLER NECK

Price €11.58
#25 19505-KS6-700 i

CLAMP A, WATER HOSE

Price €18.26
#26 19506-KGH-900

CLAMP, WATER HOSE

Price €4.90
#27 37870-KRJ-901 i

SENSOR ASSY, WATER TEMPERATURE

Price €75.68
#28 61102-KTY-D30

COLLAR, RADIATOR MOUNTING

Price €9.42
#29 61304-415-000

RUBBER, HEADLIGHT CASE MOUNTING

Price €9.37
#30 90116-KVB-900

BOLT, FLANGE, 6MM

Price €2.98
#31 90120-KCR-003

BOLT-WASHER, 6X16

Price €6.82
#32 90201-KPR-901 i

NUT, CLIP, 6MM

Price €6.38
#33 90315-MFL-003

NUT, FLANGE, 3MM

Price €6.38
#34 90454-MC7-000

WASHER, SPECIAL, 12MM

Price €5.99
#35 95002-02100 i

CLIP, TUBE (B10)

Price €1.08
#36 95002-02120

CLIP, TUBE (B12)

Price €1.08
#37 95002-4105008

CLAMP, TUBE (D105)

Price €1.50
#38 95002-50000 i

CLIP, TUBE (C9)

Price €0.78
#39 95701-0601600 i

BOLT, FLANGE, 6X16

Price €1.18
#40 95701-0602200 i

BOLT, FLANGE, 6X22

Price €1.42
#41 96001-0602500 i

BOLT, FLANGE, 6X25

Price €1.50
