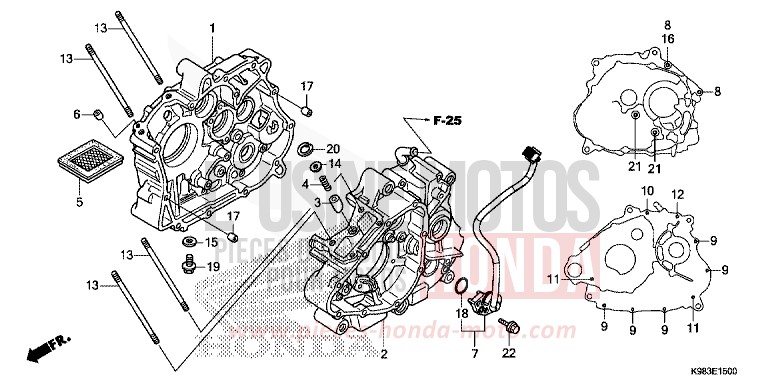

CRANKCASE for CBF125N MAT AXIS GRAY METALLIC (NH303) from 2018

CRANKCASE for CBF125N MAT AXIS GRAY METALLIC (NH303) from 2018
Reference
Product name
#1 11100-KPP-860 i

CRANKCASE COMP, R

Price €240.30
#2 11200-K98-305

CRANKCASE COMP, L

Price €478.02
#3 14521-KPP-900

PLUG, BEARING PUSH

Price €29.47
#4 14531-KPP-900

SPRING, BEARING PUSH

Price €3.16
#5 15421-035-010

SCREEN, OIL FILTER

Price €12.37
#6 15517-KGH-900

ORIFICE, 27

Price €3.16
#7 35759-K98-E01

CONTACT ASSY, CHANGE SWITCH

Price €82.78
#8 90001-KPP-860

BOLT, FLANGE, 6X65

Price €4.70
#9 90010-GHB-710 i

BOLT, FLANGE, 6X40

Price €1.74
#10 90010-GHB-740

BOLT, FLANGE, 6X55

Price €5.08
#11 90010-GHB-760

BOLT, FLANGE, 6X65

Price €5.83
#12 90010-GHB-780

BOLT, FLANGE, 6X75

Price €5.96
#13 90031-KGH-900

BOLT, CYLINDER STUD

Price €5.83
#14 90403-KPP-900

WASHER, 3X11X10

Price €3.28
#15 90407-259-000 i

PACKING, DRAIN COCK, 125X20

Price €6.19
#16 90488-425-000 i

WASHER, SEALING, 6MM

Price €7.07
#17 90702-KFM-900 i

DOWEL PIN, 8X12

Price €3.97
#18 91301-KPP-901

O-RING, 21X24

Price €6.77
#19 92800-12000 i

BOLT, DRAIN PLUG, 12MM

Price €2.70
#20 94520-12000

CIRCLIP, INTERNAL, 12MM

Price €0.88
#21 95701-0603500 i

BOLT, FLANGE, 6X35

Price €1.34
#22 96001-0602200 i

BOLT, FLANGE, 6X22

Price €1.50
