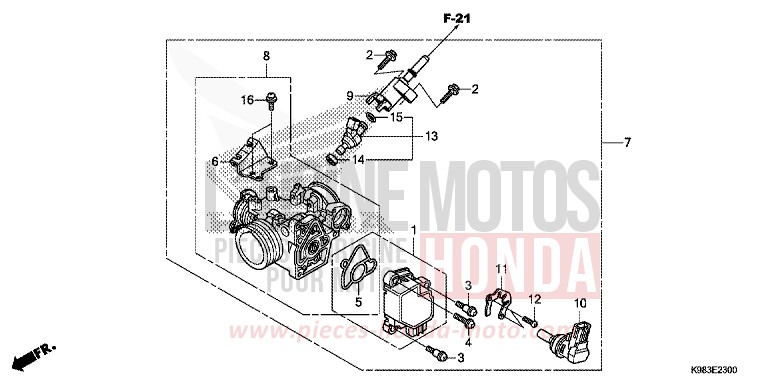

THROTTLE BODY for CBF125N CANDY CHROMOSPHERE RED (R381) from 2018

THROTTLE BODY for CBF125N CANDY CHROMOSPHERE RED (R381) from 2018
Reference
Product name
#1 16060-K84-901

SENSOR SET (KEIHIN)

Price €181.86
#2 16080-KPH-701

BOLT, FLANGE, 5X20

Price €5.04
#3 16081-KYJ-901

SCREW, TORX, 5X87

Price €6.00
#4 16082-KYJ-901

SCREW, TORX, 5X17

Price €5.15
#5 16083-KTR-941

O-RING, THROTTLE BODY

Price €5.68
#6 16169-K15-901

STAY, WIRE

Price €39.47
#7 16400-K98-E01

BODY ASSY, THROTTLE (1TA A)

Price €452.30
#8 16410-K98-E01

BODY SET

Price €224.62
#9 16422-K98-E01

JOINT, INJECTOR

Price €49.25
#10 16430-GFM-902

VALVE ASSY, IDLE AIR CONTROL

Price €89.06
#11 16432-GFM-901

PLATE, IDLE AIR CONTROL VALVE

Price €15.96
#12 16433-HN8-A61

SCREW, TORX

Price €6.42
#13 16450-K98-E01

INJECTOR ASSY, FUEL

Price €155.69
#14 16472-KPC-D50

RING, SEAL

Price €5.21
#15 91301-GGL-J01

O-RING, 63X22

Price €13.78
#16 93892-0501218

SCREW-WASHER, 5X12

Price €1.32
