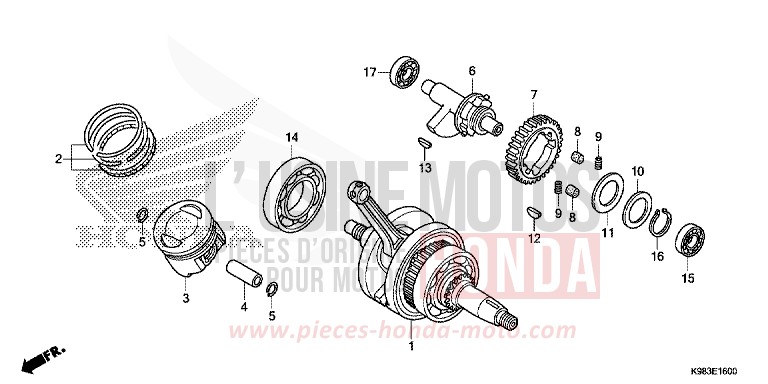

CRANKSHAFT/PISTON for CBF125N CANDY CHROMOSPHERE RED (R381) from 2018

CRANKSHAFT/PISTON for CBF125N CANDY CHROMOSPHERE RED (R381) from 2018
Reference
Product name
#2 13011-KGH-305

RING SET, PISTON (STD)

Price €40.86
#3 13101-KGH-902 i

PISTON (STD)

Price €65.30
#4 13111-KGH-903 i

PIN, PISTON

Price €10.14
#5 13115-GN5-910 i

CLIP, PISTON PIN, 13MM

Price €4.90
#6 13420-KTY-H50 i

WEIGHT COMP, BALANCER

Price €80.35
#7 13422-KPP-860

GEAR A, BALANCER DRIVEN (43T) (WHITE)

Price €103.76
#7 13423-KPP-860

GEAR B, BALANCER DRIVEN (43T) (BLUE)

Price €103.76
#7 13424-KPP-860

GEAR C, BALANCER DRIVEN (43T) (YELLOW)

Price €105.68
#8 13425-KGH-900 i

RUBBER, BALANCER DUMPER (TH KOUKOKU RUBBER)

Price €4.14
#9 13427-KPP-860

SPRING, BALANCER GEAR

Price €3.16
#10 13538-KGH-900

SPRING, THRUST

Price €5.03
#11 90401-KPP-900

WASHER, 282X45X10

Price €4.16
#12 90741-KFB-000 i

KEY, WOODRUFF, 4MM

Price €8.32
#13 90741-KGH-900 i

KEY, WOODRUFF, 4MM

Price €8.32
#14 91001-KGH-901

BEARING, RADIAL BALL, 6207

Price €46.10
#15 91003-KPP-931

BEARING, RADIAL BALL SPECIAL, 6201 (NTN)

Price €13.73
#16 94510-28000

CIRCLIP, EXTERNAL, 28MM

Price €1.96
#17 96100-6301000

BEARING, RADIAL BALL, 6301

Price €28.54
#1 13000-KPP-860

CRANKSHAFT COMP

Price €387.65
