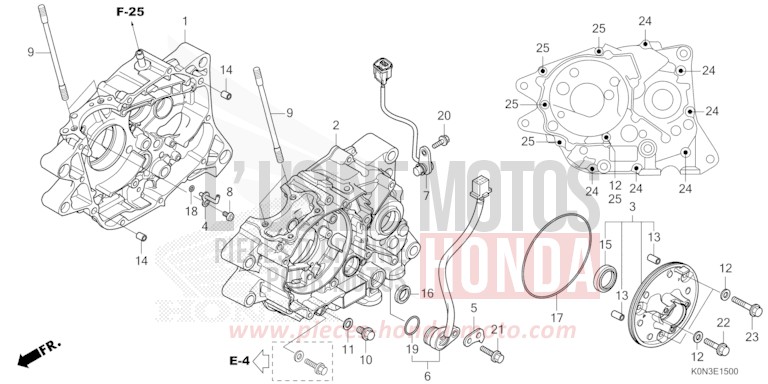

CRANKCASE for CBF125ME IMPERIAL RED METALLIC (R355) from 2024

CRANKCASE for CBF125ME IMPERIAL RED METALLIC (R355) from 2024
Reference
Product name
#1 11100-K0N-DJ0

CRANKCASE COMP, R

Price €608.41
#2 11200-K0N-DJ0

CRANKCASE COMP, L

Price €673.06
#3 11320-K0N-D00

BASE ASSY, STATOR

Price €32.35
#4 15201-K0V-AJ1

JET COMP, PISTON

Contact us
#5 35703-K0N-D00

STAY, HARNESS

Price €6.92
#6 35759-K0N-D01

CONTACT ASSY, CHANGE SWITCH

Price €44.95
#7 37700-K0N-D01

SENSOR ASSY, SPEED

Price €129.72
#8 90003-K0J-N00

BOLT, SPECIAL, 6X12

Price €3.40
#9 90031-K0J-N00

BOLT, CYLINDER STUD, 7X1195

Price €8.16
#10 90031-K0N-E00

BOLT, DRAIN PLUG, 12MM

Price €7.42
#11 90401-KWP-F00

WASHER, DRAIN PLUG, 12MM

Price €2.27
#12 90488-425-000

WASHER, SEALING, 6MM

Price €4.40
#13 90702-KRM-840

DOWEL PIN, 8X14

Price €2.81
#14 90704-K0L-D00

DOWEL PIN, 8X20

Price €1.46
#15 91201-K0N-D01

OIL SEAL, 223X32X6 (ARAI)

Price €3.62
#16 91202-K0N-D01

OIL SEAL, 12X22X5 (ARAI)

Price €7.33
#16 91202-K0V-A01

OIL SEAL, 12X22X5 (JK PIONEER)

Price €7.00
Contact us
#17 91301-035-003

O-RING, 107X2 (ARAI)

Price €7.60
#18 91305-K0J-N00

O-RING, 38X14

Price €3.22
#19 91305-K0N-D00

O-RING, 194X23

Price €3.05
#20 95701-0601808

BOLT, FLANGE, 6X18

Price €1.06
#21 95701-0602208

BOLT, FLANGE, 6X22

Price €1.22
#22 96001-0602200

BOLT, FLANGE, 6X22

Price €1.48
#23 96001-0603000

BOLT, FLANGE, 6X30

Price €1.48
#24 90010-KWF-940

BOLT, FLANGE, 6X40

Price €3.16
#25 90005-K0N-E00

BOLT, FLANGE, 6X75

Price €3.14
