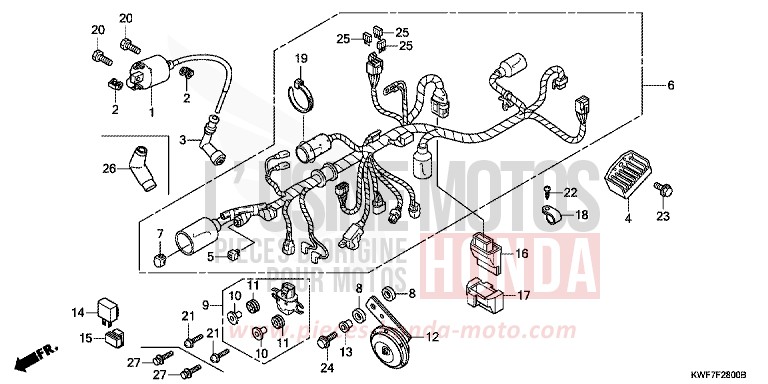

WIRE HARNESS for CBF125M VIRTUOUS WHITE (NHB16) from 2013

WIRE HARNESS for CBF125M VIRTUOUS WHITE (NHB16) from 2013
Reference
Product name
#1 30510-KTY-D31 i

COIL COMP, IGNITION

Price €41.16
#2 30520-ML7-000

SPACER, IGNITION COIL

Price €8.32
#4 31600-KSP-861 i

RECTIFIER COMP, REGULATOR

Price €82.56
#5 31700-196-000

RECTIFIER COMP, SILICON

Price €42.31
#6 32100-KWF-D00

HARNESS, WIRE

Price €125.14
#7 32606-GEV-761

CAP, DUMMY (4P) (RED)

Price €10.52
#8 33714-KL3-620

RUBBER, TAILLIGHT BRACKET

Price €7.60
#9 35160-KWF-951 i

SENSOR ASSY, BANK ANGLE

Price €359.09
Contact us
#10 35162-MFA-D01

COLLAR

Price €12.19
#11 35163-MBZ-C50

GROMMET

Price €9.78
#12 38110-KWF-952 i

HORN COMP

Price €20.32
Contact us
#13 38117-KFE-701 i

COLLAR, HORN SETTING

Price €3.28
#14 38301-KPL-901 i

RELAY COMP, WINKER

Price €10.01
#15 38306-GE7-000 i

SUSPENSION, WINKER RELAY

Price €14.16
#16 38770-KWF-D02

PGM-FI UNIT

Price €384.31
#17 38771-KTW-900

CUSHION, PGM-FI UNIT

Price €6.90
#18 90628-750-000

CLIP (14MM)

Price €3.17
#19 90651-KV6-003 i

BAND, WIRE, 165MM (BLACK)

Price €9.78
#20 92101-060204J i

BOLT, HEX, 6X20

Price €1.81
#22 93903-24320

SCREW, TAPPING, 4X12

Price €0.64
#23 95701-0601200 i

BOLT, FLANGE, 6X12

Price €1.15
#23 95702-0601200

BOLT, FLANGE, 6X12

Contact us
#24 95701-0602008 i

BOLT, FLANGE, 6X20

Price €1.15
#24 95702-0602008

BOLT, FLANGE, 6X20

Contact us
#25 98200-41000

FUSE, MINI (10A)

Price €1.25
#26 30700-KSP-B01

CAP ASSY, NOISE SUPPRESSOR

Price €7.46
#27 93401-0402508

BOLT-WASHER, 4X25

Price €0.79
