HANDLE LEVER/SWITCH/CABLE 🏍️ CBF125M
HANDLE PIPE/TOP BRIDGE 🏍️ CBF125M

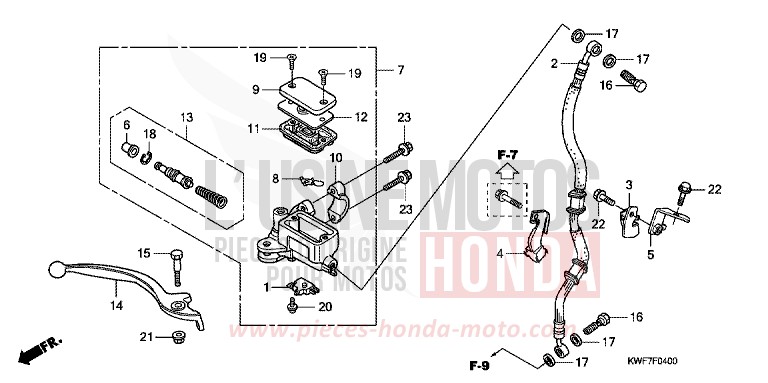

FR. BRAKE MASTER CYLINDER for CBF125M VIRTUOUS WHITE (NHB16) from 2011

FR. BRAKE MASTER CYLINDER for CBF125M VIRTUOUS WHITE (NHB16) from 2011
Reference
Product name
#1 35340-MM5-600

SWITCH ASSY, FR STOP

Price €44.35
#2 45126-KWF-931

HOSE COMP, FR BRAKE

Price €69.29
#3 45155-KWF-930

CLAMPER, FR BRAKE

Price €1.84
#4 45156-KSP-900

CLAMPER B, FR BRAKE HOSE

Price €7.36
#5 45160-KWF-930

STAY COMP, BRAKE HOSE CLAMPER

Price €1.93
#6 45504-410-003

BOOT COMP

Price €15.22
#7 45510-KWF-951

CYLINDER SUB ASSY, FR BRAKE MASTER (NISSIN)

Price €502.00
#8 45512-MA6-006

PROTECTOR

Price €74.21
#9 45513-HA2-006

CAP, MASTER CYLINDER

Price €43.54
#10 45517-166-006

HOLDER, MASTER CYLINDER

Price €22.57
#11 45520-MG7-006

DIAPHRAGM

Price €24.06
#12 45521-HA2-006

PLATE, DIAPHRAGM

Price €13.94
#13 45530-471-831

CYLINDER SET, MASTER

Price €83.28
#14 53175-KBW-900

LEVER, R HANDLE

Price €16.90
#15 90114-166-006

BOLT, HANDLE LEVER PIVOT

Price €8.58
#16 90145-GW3-981

BOLT, OIL, 10X22

Price €11.41
#17 90545-300-000

WASHER, OIL BOLT

Price €6.41
#18 90651-MA5-671

CIRCLIP

Price €5.83
#19 93600-040121G

SCREW, FLAT, 4X12

Price €0.76
#20 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#21 94050-06000

NUT, FLANGE, 6MM

Price €0.78
#22 96001-0601200

BOLT, FLANGE, 6X12

Price €1.22
#23 96001-0602207

BOLT, FLANGE, 6X22

Price €1.70
