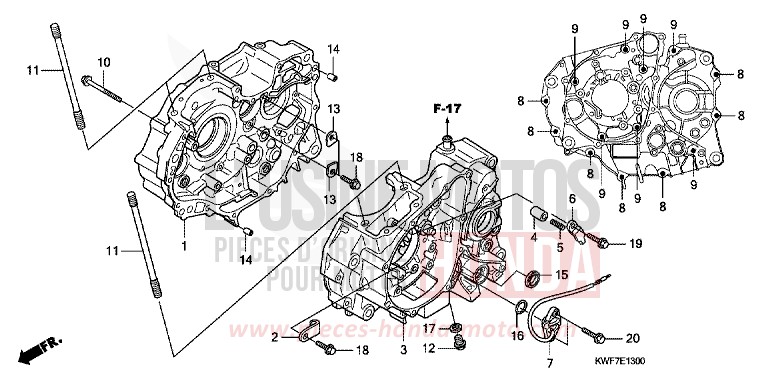

CRANKCASE for CBF125M VIRTUOUS WHITE (NHB16) from 2011

CRANKCASE for CBF125M VIRTUOUS WHITE (NHB16) from 2011
Reference
Product name
#1 11100-KWF-920

CRANKCASE COMP, R

Price €419.94
Contact us
#2 11108-KTT-900 i

PLATE, L BEARING SETTING

Price €9.68
#3 11200-KWF-920 i

CRANKCASE COMP, L

Price €394.44
#4 11215-KRM-840 i

PLUG, BEARING PUSH

Price €5.05
#5 11216-KRM-840 i

SPRING, BEARING PUSH

Price €2.71
#6 11217-KRM-840 i

PLATE, BEARING PUSH

Price €3.43
#7 35759-KWF-940 i

CONTACT ASSY, NEUTRAL SWITCH

Price €7.43
#8 90001-KWF-940

BOLT, FLANGE, 6X40

Price €3.94
#9 90002-KWF-940

BOLT, FLANGE, 6X70

Price €5.32
#10 90021-KWF-940

BOLT, FLANGE, 6X45

Price €1.52
#11 90031-KSP-910

BOLT, CYLINDER STUD, 8X140

Price €5.71
#12 90131-KRM-840 i

BOLT, DRAIN PLUG, 12MM

Price €2.70
#13 90441-KRM-840 i

PLATE, BEARING HOLDER

Price €0.98
#14 90702-KRM-840 i

DOWEL PIN, 8X14

Price €2.81
#15 91203-KSP-911 i

OIL SEAL, 14X22X5 (ARAI)

Price €1.54
#16 91305-KPH-900

O-RING, 194X23

Price €1.91
#17 94109-12000 i

WASHER, DRAIN PLUG, 12MM

Price €1.78
#18 95701-0601600 i

BOLT, FLANGE, 6X16

Price €1.18
#18 95702-0601600

BOLT, FLANGE, 6X16

Contact us
#19 96001-0601800 i

BOLT, FLANGE, 6X18

Price €1.25
#20 96001-0602000 i

BOLT, FLANGE, 6X20

Price €1.25
