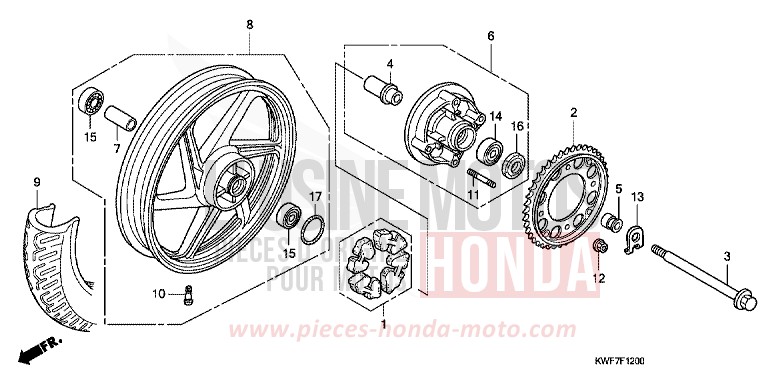

REAR WHEEL for CBF125M SPORTS RED (R321) from 2011

REAR WHEEL for CBF125M SPORTS RED (R321) from 2011
Reference
Product name
#1 06410-KTE-910 i

DAMPER SET, WHEEL

Price €10.66
#2 41200-KWF-950

SPROCKET COMP, FINAL DRIVEN (42T)

Price €53.47
#3 42301-KWF-950

AXLE, RR WHEEL

Price €12.19
#4 42303-KWF-950

SLEEVE, RR WHEEL

Price €6.59
#5 42304-KWF-950

COLLAR, RR AXLE SLEEVE

Price €6.59
#6 42615-KWF-950

FLANGE SUB ASSY, FINAL DRIVEN

Price €56.59
#7 42620-KTE-950

COLLAR, RR AXLE DISTANCE

Price €4.57
#8 42650-KWF-900

WHEEL SUB ASSY, RR

Price €610.70
#9 42711-KWF-930

TIRE, RR (TVS) (100/90-17 M/C 55P)

Price €140.63
Contact us
#9 42711-KWF-951 i

TIRE, RR (CONTI) (100/90-17 M/C 55P)

Price €187.96
Contact us
#10 42753-KWF-901 i

VALVE, RIM (TRITON)

Price €6.80
#11 90128-KTE-910

BOLT, STUD, 8X20

Price €1.52
#12 90309-KTE-911

NUT, FLANGE SPECIAL, 8MM

Price €1.76
#13 90558-KTR-900

WASHER, RR AXLE

Price €2.66
#14 91051-KWF-901 i

BEARING, RADIAL BALL, 6203UU (NSK)

Price €24.24
#14 96150-6203010 i

BEARING, RADIAL BALL, 6203UU

Price €24.24
#15 91052-KWF-901 i

BEARING, RADIAL BALL, 6301U (NSK)

Price €18.77
#15 96140-6301010 i

BEARING, RADIAL BALL, 6301U

Price €18.77
#16 91251-KGH-901 i

DUST SEAL, 27X40X45 (ARAI)

Price €2.03
#17 91304-704-000

O-RING, 42MM

Price €3.42
