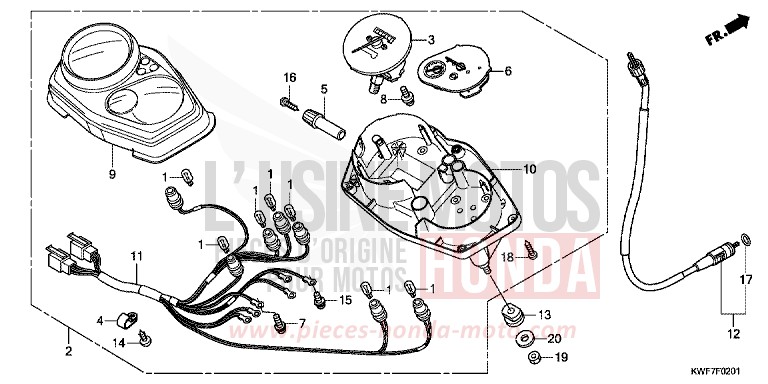

METER (CBF125MB/D) for CBF125M SPORTS RED (R321) from 2011

METER (CBF125MB/D) for CBF125M SPORTS RED (R321) from 2011
Reference
Product name
#1 34908-KVE-900

BULB, WEDGE BASE (T10) (12V 17W) (TOSHIBA)

Price €8.02
#2 37100-KWF-D01

METER ASSY, COMBINATION (KPH)

Price €519.48
#3 37200-KWF-841

SPEEDOMETER ASSY (KPH)

Price €84.38
#4 37215-KR1-760

CLAMP

Price €7.16
#5 37220-KWF-901

KNOB

Price €2.72
#6 37250-KWF-N01

METER ASSY, TACHOMETER &amp FUEL

Price €78.68
#7 37305-KE5-008

SCREW-WASHER, 3X22

Price €7.16
#8 37305-MAW-621

SCREW-WASHER, 4X12

Price €6.24
#9 37610-KWF-851

CASE ASSY, UPPER

Price €29.40
#10 37612-KWF-N01

CASE ASSY, UNDER

Price €20.10
#11 37619-KWF-D01

SOCKET COMP

Price €19.87
#12 44830-KWF-900

CABLE COMP, SPEEDOMETER

Price €30.67
#13 80101-443-000

RUBBER, RR FENDER CUSHION

Price €1.37
#14 90109-MZ5-008

SCREW, TAPPING, 4X14

Price €7.81
#15 90133-SL9-003

SCREW-WASHER, 3X18

Price €4.07
#16 90158-KM7-911

SCREW, PAN, 2X6

Price €5.51
#17 91352-671-003

O-RING, 85X15 (ARAI)

Price €3.10
#17 91352-671-004

O-RING, 85X15 (NOK)

Price €3.10
#18 93903-22420

SCREW, TAPPING, 3X16

Price €0.62
#19 94001-060700S

NUT, HEX, 6MM

Price €0.86
#20 94103-06700

WASHER, PLAIN, 6MM

Price €0.77
