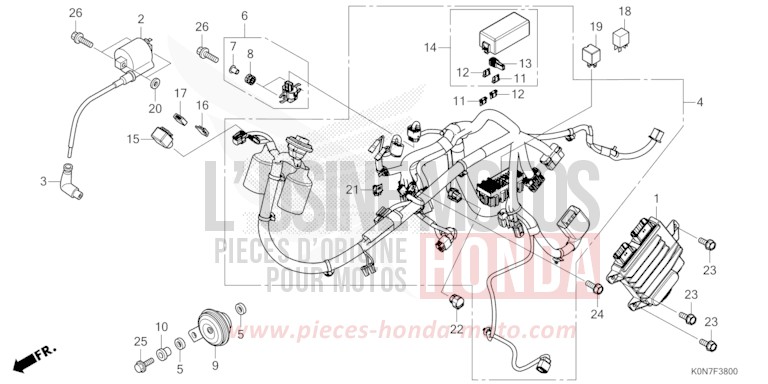

WIRE HARNESS for CBF125M PEARL SPLENDOR RED (R369) from 2021

WIRE HARNESS for CBF125M PEARL SPLENDOR RED (R369) from 2021
Reference
Product name
#1 30400-K0N-E01

CONTROL UNIT, ENGINE

Price €662.04
#1 30400-K0N-E02

CONTROL UNIT, ENGINE

Price €662.04
#2 30500-K0N-E01

COIL COMP, IGNITION (TOYO DENSO)

Price €74.74
#3 30700-K0N-E01

CAP ASSY, NOISE SUPPRESSOR (ANU)

Price €59.89
#4 32100-K0N-E00

HARNESS, WIRE

Price €234.06
#5 33714-KL3-620

RUBBER, TAILLIGHT BRACKET

Price €6.62
#6 35160-KRE-G01

SENSOR ASSY, BANK ANGLE

Price €163.00
#7 35162-KRE-G00

COLLAR

Price €9.92
#8 35163-KRE-G00

GROMMET

Price €19.90
#9 38110-MEF-003

HORN COMP (HIGH)

Price €81.65
#10 38117-KFE-701

COLLAR, HORN SETTING

Price €18.05
#11 38221-SNA-A31

FUSE, BLADE (75A)

Price €5.34
#12 38221-SNA-A61

FUSE, BLADE (20A)

Price €5.72
#13 38235-TA0-A01

PULLER, FUSE

Price €2.76
#14 38255-K0N-D01

COVER ASSY, POWER BOX

Price €16.87
#15 38301-KYJ-641

RELAY COMP, WINKER (MITSUBA)

Price €78.22
#16 38304-K0N-E00

STAY, WINKER RELAY

Price €7.18
#17 38306-KK4-000

SUSPENSION, WINKER RELAY (MITSUBA)

Price €8.46
#18 38501-KVZ-631

RELAY ASSY, POWER (MICRO ISO 4P) (MITSUBA)

Price €22.70
#19 38502-KWN-701

RELAY COMP, POWER (5P) (PANASONIC)

Price €39.20
#20 90502-198-900

WASHER, BRAKE ROD (IGNITION COIL)

Contact us
#21 91535-TA0-003

CLIP, COUPLER (DARK BROWN)

Price €8.64
#22 91771-MKK-H11

CAP, DUMMY (6P) (RED)

Price €13.45
#24 95701-0601608

BOLT, FLANGE, 6X16

Price €1.06
#24 95702-0601608

BOLT, FLANGE, 6X16

Contact us
#25 95701-0602008

BOLT, FLANGE, 6X20

Price €1.13
#25 95702-0602008

BOLT, FLANGE, 6X20

Contact us
#26 95701-0602208

BOLT, FLANGE, 6X22

Price €1.22
