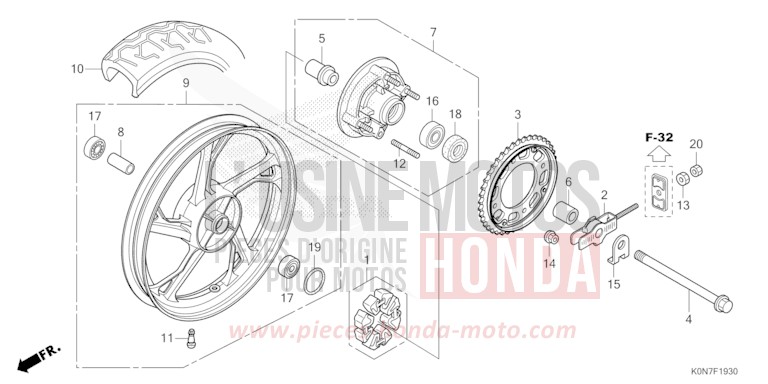

REAR WHEEL for CBF125M PEARL SPLENDOR RED (R369) from 2021

REAR WHEEL for CBF125M PEARL SPLENDOR RED (R369) from 2021
Reference
Product name
#1 06410-K67-900

DAMPER SET, WHEEL

Price €41.16
#2 40543-K0N-E00

ADJUSTER COMP, R CHAIN (L SIDE)

Price €9.07
#3 41200-K0N-E00

SPROCKET COMP, FINAL DRIVEN (41T)

Price €117.07
#4 42301-K0N-E00

AXLE, RR WHEEL

Price €16.15
#5 42303-K0N-D00

SLEEVE, RR WHEEL

Price €34.57
#6 42304-K0N-E00

COLLAR, RR WHEEL SIDE

Price €10.09
#7 42615-K0N-E00

FLANGE SUB ASSY, FINAL DRIVEN

Price €76.01
#8 42620-KTE-D80

COLLAR, RR AXLE DISTANCE

Price €41.56
#9 42650-K0N-E00

WHEEL SUB ASSY, RR

Price €606.59
#10 42711-KPN-A71

TIRE, RR (CHENG SHIN) (90/90-18 M/C 51P)

Price €167.98
#11 42753-KBS-901

VALVE, RIM (WONDER)

Price €8.74
#12 90128-KTE-910

BOLT, STUD, 8X20

Price €1.57
#13 90302-KBP-900

NUT, SPECIAL, 6MM

Price €3.36
#14 90309-KTE-911

NUT, FLANGE SPECIAL, 8MM

Price €4.46
#15 90558-KTR-900

WASHER, RR AXLE

Price €2.22
#16 91051-K23-902

BEARING, RADIAL BALL, 6203UU (SKF)

Price €39.25
#17 91053-KWB-601

BEARING, RADIAL BALL, 6301U (NTN)

Price €27.00
#18 91251-KGH-901

DUST SEAL, 27X40X45 (ARAI)

Price €5.74
#19 91304-704-000

O-RING, 42MM

Price €3.35
#20 94001-060000S

NUT, HEX, 6MM

Price €1.16
