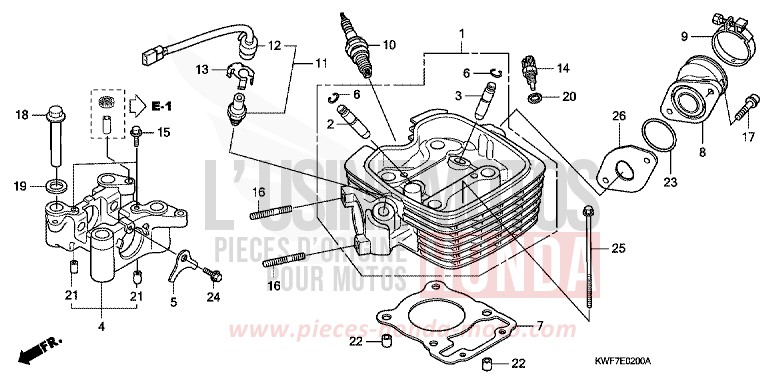

CYLINDER HEAD for CBF125M PEARL SIENA RED (R320) from 2013

CYLINDER HEAD for CBF125M PEARL SIENA RED (R320) from 2013
Reference
Product name
#1 12200-KWF-960

HEAD COMP, CYLINDER

Price €715.10
#2 12204-KRM-305

GUIDE, VALVE (OS)

Price €20.44
#3 12205-KSP-305

GUIDE, IN VALVE (OS)

Price €56.11
#4 12210-KTE-910

HOLDER COMP, CAMSHAFT

Price €183.64
#5 12212-KRM-840

PLATE, STOPPER

Price €1.75
#6 12213-KSP-910

CLIP, VALVE GUIDE

Price €1.96
#7 12251-KTE-911

GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

Price €23.11
#8 16210-KWF-942

INSULATOR COMP, THROTTLE BODY

Price €36.59
#9 16217-KSP-910

BAND, INSULATOR

Price €3.88
#10 31906-KTE-911

PLUG, SPARK (UR6DC)

Price €14.32
#10 31916-KRM-841

PLUG, SPARK (CPR8EA-9) (NGK)

Price €16.49
#10 31916-KTE-910

PLUG, SPARK (UR5DC)

Price €16.43
Contact us
#10 31917-KPH-901

PLUG, SPARK (CPR7EA-9) (NGK)

Price €10.90
#11 36532-KWF-941

SENSOR, OXYGEN

Price €261.50
#12 36533-KWF-941

CORD COMP, OXYGEN SENSOR

Price €63.80
Contact us
#13 36538-KWF-940

COVER, O2 SENSOR

Price €5.36
#14 37750-KPH-701

SENSOR ASSY, THERMOSTAT OIL (PANASONIC)

Price €156.02
#15 90002-KRM-840

BOLT, FLANGE, 5X14

Price €0.79
#16 90035-KRM-840

BOLT, STUD, 8X22

Price €16.64
#17 90091-KWF-940

BOLT, FLANGE SOCKET, 6X22

Price €1.78
#18 90306-KRM-840

NUT, CYLINDER HEAD

Price €16.36
#19 90404-KPT-A00

WASHER, PLAIN, 12MM

Price €2.83
#20 90443-MB0-000

WASHER, SEALING, 102MM

Price €5.98
#21 90704-KRM-840

DOWEL PIN, 6X10

Price €2.21
#21 94302-06100

PIN B, DOWEL, 6X10

Price €1.78
#21 94303-06100

DOWEL PIN, 6X10

Price €1.78
#22 90703-KRM-840

DOWEL PIN, 10X12

Price €2.94
#23 91304-KRM-840

O-RING, 335X30

Price €7.91
#24 95701-0601400

BOLT, FLANGE, 6X14

Price €1.13
#24 95702-0601400

BOLT, FLANGE, 6X14

Contact us
#25 95801-0610500

BOLT, FLANGE, 6X105

Price €2.40
#25 95802-0610500

BOLT, FLANGE, 6X105

Contact us
#26 16214-KWF-941

GASKET, CARBURETOR INSULATOR

Price €10.06
