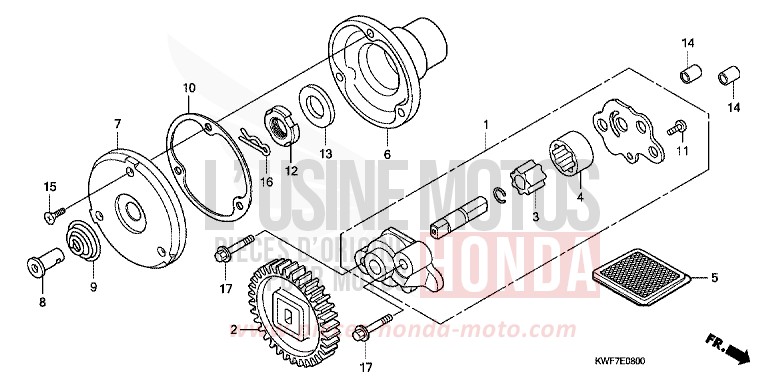

OIL PUMP for CBF125M BLACK (NH1) from 2013

OIL PUMP for CBF125M BLACK (NH1) from 2013
Reference
Product name
#1 15100-KTE-910

PUMP ASSY, OIL

Price €17.02
#2 15130-KTE-910 i

GEAR COMP, OIL PUMP (34T)

Price €73.72
#3 15331-KTE-910

ROTOR, OIL PUMP INNER

Price €4.60
#4 15332-KTE-910

ROTOR, OIL PUMP OUTER

Price €6.12
#5 15421-KSP-910

CREPINE DE FILTRE A OIL

Price €1.98
#6 15430-KSP-910 i

ROTOR, OIL FILTER

Price €22.44
#7 15436-KRM-840 i

CAP, OIL FILTER ROTOR

Price €12.05
#8 15441-KCS-650 i

THROUGH, OIL

Price €15.30
#9 15446-107-000 i

RESSORT DE PASSAGE OIL

Price €7.72
#10 15459-KWK-900 i

GASKET, OIL FILTER CAP

Price €5.14
#11 90106-GHR-J20

SCREW, TAPPING, 4X8

Contact us
#11 93901-34120

SELF-TAPPING SCREW, 4X8

Price €0.64
#12 90231-KRM-840 i

NUT, LOCK, 14MM

Price €7.85
#13 90432-KPT-A00 i

WASHER, 14.2X26X3

Price €6.80
#14 90702-KRM-840 i

STUD, 8X14

Price €2.81
#15 93700-050120A i

VIS A TETE OVALE, 5X12

Price €0.78
#16 94251-08000 i

PIN OF BLOCAGE, 8MM

Price €1.25
#17 95701-0603500 i

FLANGE BOLT, 6X35

Price €1.34
#17 95702-0603500

BOLT, FLANGE, 6X35

Contact us
