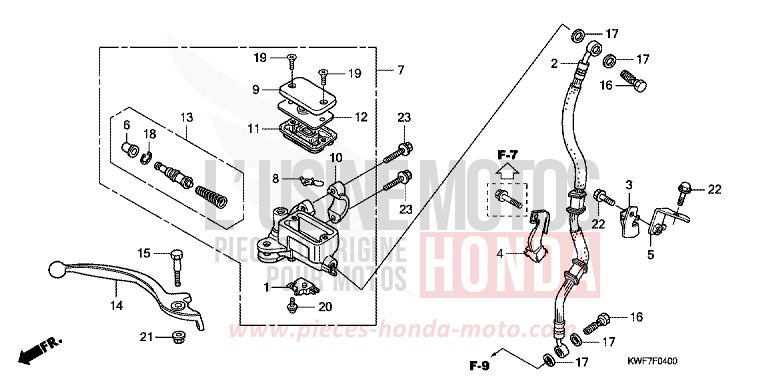

FR. BRAKE MASTER CYLINDER for CBF125M BLACK (NH1) from 2011

FR. BRAKE MASTER CYLINDER for CBF125M BLACK (NH1) from 2011
Reference
Product name
#1 35340-MM5-600 i

ASSY. SWITCH STOP FRONT

Price €40.21
#2 45126-KWF-931 i

HOSE COMP, FR BRAKE

Price €72.20
#3 45155-KWF-930

CLAMPER, FR BRAKE

Price €2.64
#4 45156-KSP-900

CLAMPER B, FR BRAKE HOSE

Price €4.13
#5 45160-KWF-930

STAY COMP, BRAKE HOSE CLAMPER

Price €3.60
#6 45504-410-003 i

BOOT COMP.

Price €17.71
#7 45510-KWF-951

CYLINDER SUB ASSY, FR BRAKE MASTER (NISSIN)

Price €131.99
#8 45512-MA6-006

PROTECTOR

Price €7.12
#9 45513-HA2-006 i

CAP OF MASTER CYLINDER

Price €42.83
#10 45517-166-006 i

SUPPORT OF MASTER CYLINDER

Price €28.03
#11 45520-MG7-006 i

MEMBRANE

Price €19.44
#12 45521-HA2-006 i

PLATE, MEMBRANE

Price €18.22
#13 45530-471-831 i

SET OF MASTER CYLINDER

Price €81.41
#14 53175-KBW-900

LEVER, R HANDLE

Price €24.40
#15 90114-166-006 i

BOLT OF PIVOT OF LEVER HANDLE

Price €10.25
#16 90145-GW3-981 i

BOLT D'OIL, 10X22

Price €12.72
#17 90545-300-000 i

WASHER OF BOLT OIL

Price €5.30
#18 90651-MA5-671 i

CIRCLIP

Price €7.63
#19 93600-040121G i

SCREW A HEAD PLATE, 4X12

Price €0.77
#20 93893-0401217 i

SCREW A HEAD A WASHER, 4X12

Price €1.08
#21 94050-06000 i

FLANGE NUT, 6MM

Price €0.79
#22 96001-0601200 i

FLANGE BOLT, 6X12

Price €1.25
#23 96001-0602207 i

FLANGE BOLT, 6X22

Price €1.74
