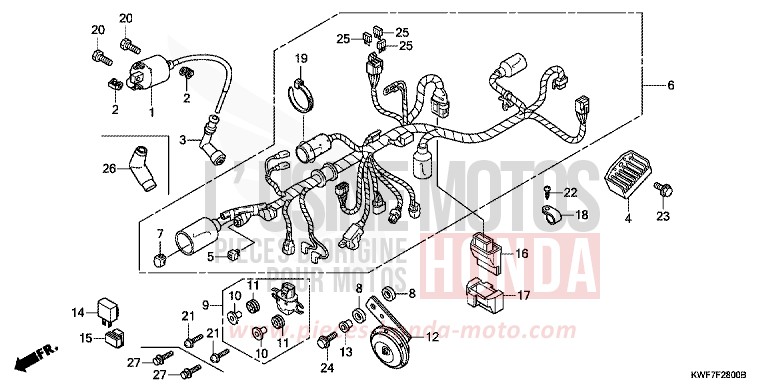

WIRE HARNESS for CBF125M BLACK (NH1) from 2010

WIRE HARNESS for CBF125M BLACK (NH1) from 2010
Reference
Product name
#1 30510-KTY-D31 i

COIL COMP, IGNITION

Price €41.16
#2 30520-ML7-000

IGNITION COIL SPACER

Price €8.32
#3 30700-KWF-950

CAP ASSY, NOISE SUPPRESSOR

Price €7.78
#4 31600-KSP-861 i

RECTIFIER COMP, REGULATOR

Price €82.56
#5 31700-196-000

RECTIFICATEUR COMP. SILICIUM

Price €42.31
#6 32100-KWF-950

HARNESS, WIRE

Price €361.68
Contact us
#7 32606-GEV-761

CAP, FAUX (4P) (ROUGE)

Price €10.52
#8 33714-KL3-620

RUBBER OF SUPPORT OF REAR LIGHT

Price €7.60
#9 35160-KWF-951 i

SENSOR ASSY, BANK ANGLE

Price €359.09
Contact us
#10 35162-MFA-D01

BAND

Price €12.19
#11 35163-MBZ-C50

GROMMET

Price €9.78
#12 38110-KWF-952 i

HORN COMP

Price €20.32
Contact us
#13 38117-KFE-701 i

RING, ADJUSTMENT KLAXON

Price €3.28
#14 38301-KPL-901 i

RELAY COMP, WINKER

Price €10.01
#15 38306-GE7-000 i

RUBBER D'DAMPER OF CENTER CLIGNOTANTE

Price €14.16
#16 38770-KWF-951 i

PGM-FI UNIT

Price €406.30
#17 38771-KTW-900

CUSHION, PGM-FI UNIT

Price €6.90
#18 90628-750-000

CLIP (14MM)

Price €3.17
#19 90651-KV6-003 i

STRIPE, CABLE 165MM (BLACK)

Price €9.78
#20 92101-060204J i

BOLT HEX., 6X20

Price €1.81
#21 93891-0402207 i

SCREW-WASHER, 4X22

Price €0.80
Contact us
#22 93903-24320

SELF-TAPPING SCREW, 4X12

Price €0.64
#23 95701-0601200 i

FLANGE BOLT, 6X12

Price €1.15
#23 95702-0601200

BOLT, FLANGE, 6X12

Contact us
#24 95701-0602008 i

FLANGE BOLT, 6X20

Price €1.15
#24 95702-0602008

BOLT, FLANGE, 6X20

Contact us
#25 98200-41000

MINI-FUSE (10A)

Price €1.25
